Vehicle Exploded View - PIAGGIO VU TRACKMASTER ATV 400 Trackmaster 400 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

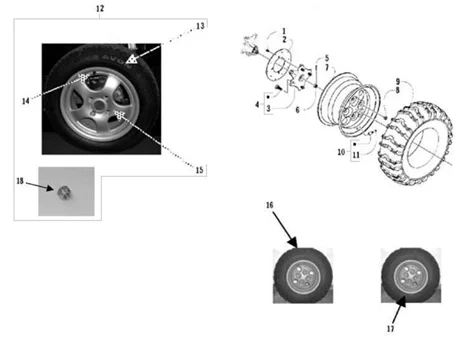

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/335/Trackmaster_400_2006_04.11.PNG)
1 |
651848 - VIS More informationQuantity required : 12 |
||||||
|
2 |
629001 - DISQUE FREIN More informationQuantity required : 3 |
||||||
|
3 |
629002 - MOYEU ROUE More informationQuantity required : 3 |
||||||
|
5 |
629004 - PIVOT More informationQuantity required : 2 |
||||||
|
6 |
629005 - ECROU More informationQuantity required : 2 |
||||||
|
7 |
629006 - JANTE ROUE AV. More informationQuantity required : 2 |
||||||
|
7 |
629007 - JANTE ROUE AV. More informationQuantity required : 2 |
||||||
|
9 |
629009 - TIRE More informationQuantity required : 2 |
||||||
|
10 |
629010 - TIGE More informationQuantity required : 2 |
||||||
|
11 |
629011 - BOUCHON More informationQuantity required : 2 |
||||||
|
12 |
629947 - ROUE COMPLETE More informationQuantity required : 1 |
||||||
|
13 |
629942 - PNEU More informationQuantity required : 1 |
||||||
|
14 |
629943 - SOUPAPE More informationQuantity required : 1 |
||||||
|
15 |
629944 - JANTE More informationQuantity required : 1 |
||||||
|
16 |
629017 - WHEEL GRAY More informationQuantity required : 1 |
||||||
|
17 |
629018 - WHEEL GRAY More informationQuantity required : 1 |
||||||
|
18 |
629021 - ECROU More informationQuantity required : 16 |
