Vehicle Exploded View - PIAGGIO VU TRACKMASTER ATV 400 Trackmaster 400 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

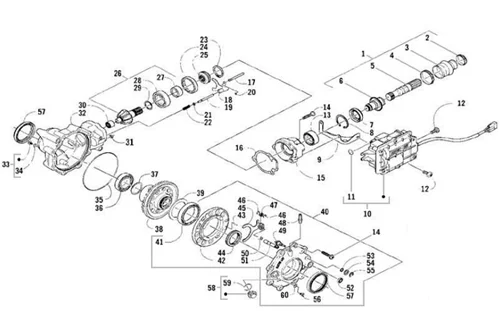

Moteur : 01.27 TRANSMISSION AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/335/Trackmaster_400_2006_01.27.PNG)
1 |
629230 - SHAFT PROPELLER More informationQuantity required : 1 |
||||||
|
2 |
629231 - COLLIER More informationQuantity required : 1 |
||||||
|
3 |
629232 - MANCHON More informationQuantity required : 1 |
||||||
|
4 |
629233 - COLLIER More informationQuantity required : 1 |
||||||
|
5 |
629234 - SHAFT PROPELLER More informationQuantity required : 1 |
||||||
|
6 |
629235 - SHAFT PROPELLER More informationQuantity required : 1 |
||||||
|
7 |
629236 - GARNITURE More informationQuantity required : 1 |
||||||
|
8 |
628939 - RING RETAINER More informationQuantity required : 1 |
||||||
|
9 |
629238 - SUPPORT More informationQuantity required : 1 |
||||||
|
10 |
629239 - ACTUATOR PUSH More informationQuantity required : 1 |
||||||
|
11 |
629240 - O-RING More informationQuantity required : 1 |
||||||
|
12 |
629241 - VIS More informationQuantity required : 3 |
||||||
|
13 |
629242 - DOUILLE More informationQuantity required : 1 |
||||||
|
14 |
629243 - VIS More informationQuantity required : 1 |
||||||
|
15 |
629244 - HOUSING, LOWER More informationQuantity required : 1 |
||||||
|
16 |
629245 - GARNITURE More informationQuantity required : 1 |
||||||
|
17 |
629246 - SHAFT PROPELLER More informationQuantity required : 1 |
||||||
|
18 |
629247 - FORK, SHIFT More informationQuantity required : 1 |
||||||
|
19 |
629248 - SHAFT PROPELLER More informationQuantity required : 1 |
||||||
|
20 |
629249 - RING RETAINER More informationQuantity required : 1 |
||||||
|
21 |
629250 - O-RING More informationQuantity required : 1 |
||||||
|
22 |
629251 - RESSORT More informationQuantity required : 1 |
||||||
|
23 |
629252 - RING RETAINER More informationQuantity required : 1 |
||||||
|
24 |
629253 - COLLIER More informationQuantity required : 1 |
||||||
|
25 |
629254 - COUPLER DRIVE More informationQuantity required : 1 |
||||||
|
26 |
629255 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
27 |
629256 - COLLIER More informationQuantity required : 1 |
||||||
|
28 |
629257 - DOUILLE More informationQuantity required : 1 |
||||||
|
29 |
629258 - EPAISSEUR More informationQuantity required : 1 |
||||||
|
29 |
629260 - EPAISSEUR More informationQuantity required : 1 |
||||||
|
29 |
629262 - EPAISSEUR More informationQuantity required : 1 |
||||||
|
29 |
629263 - EPAISSEUR More informationQuantity required : 1 |
||||||
|
29 |
629264 - EPAISSEUR More informationQuantity required : 1 |
||||||
|
30 |
629265 - DOUILLE More informationQuantity required : 1 |
||||||
|
31 |
629266 - PIVOT More informationQuantity required : 1 |
||||||
|
32 |
629267 - HOUSING, LOWER More informationQuantity required : 1 |
||||||
|
33 |
629268 - BOUCHON More informationQuantity required : 1 |
||||||
|
34 |
629269 - O-RING More informationQuantity required : 1 |
||||||
|
35 |
629270 - O-RING More informationQuantity required : 1 |
||||||
|
36 |
629271 - DOUILLE More informationQuantity required : 1 |
||||||
|
37 |
629272 - EPAISSEUR More informationQuantity required : 1 |
||||||
|
37 |
629273 - EPAISSEUR More informationQuantity required : 1 |
||||||
|
37 |
629274 - EPAISSEUR More informationQuantity required : 1 |
||||||
|
37 |
629275 - EPAISSEUR More informationQuantity required : 1 |
||||||
|
37 |
629276 - EPAISSEUR More informationQuantity required : 1 |
||||||
|
38 |
629277 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
39 |
629278 - EPAISSEUR More informationQuantity required : 1 |
||||||
|
39 |
629279 - EPAISSEUR More informationQuantity required : 1 |
||||||
|
39 |
629280 - EPAISSEUR More informationQuantity required : 1 |
||||||
|
39 |
629281 - EPAISSEUR More informationQuantity required : 1 |
||||||
|
39 |
629282 - EPAISSEUR More informationQuantity required : 1 |
||||||
|
40 |
629283 - COUVERCLE More informationQuantity required : 1 |
||||||
|
41 |
629284 - DOUILLE More informationQuantity required : 1 |
||||||
|
42 |
629285 - FLANGE, BEARING More informationQuantity required : 1 |
||||||
|
43 |
629286 - PIVOT More informationQuantity required : 1 |
||||||
|
44 |
629287 - COLLIER More informationQuantity required : 1 |
||||||
|
45 |
629288 - FORK, SHIFT More informationQuantity required : 1 |
||||||
|
46 |
629290 - RING RETAINER More informationQuantity required : 2 |
||||||
|
47 |
629291 - RESSORT More informationQuantity required : 1 |
||||||
|
48 |
629292 - TUYAU More informationQuantity required : 1 |
||||||
|
49 |
629293 - SWITCH CONTROL More informationQuantity required : 1 |
||||||
|
50 |
629294 - RESSORT More informationQuantity required : 1 |
||||||
|
51 |
629296 - SHAFT PROPELLER More informationQuantity required : 1 |
||||||
|
52 |
629297 - GARNITURE More informationQuantity required : 1 |
||||||
|
53 |
629298 - O-RING More informationQuantity required : 1 |
||||||
|
54 |
629299 - RONDELLE More informationQuantity required : 1 |
||||||
|
55 |
629300 - RING RETAINER More informationQuantity required : 1 |
||||||
|
56 |
629301 - BOUCHON More informationQuantity required : 1 |
||||||
|
57 |
629302 - GARNITURE More informationQuantity required : 2 |
||||||
|
58 |
629303 - BOUCHON More informationQuantity required : 1 |
||||||
|
59 |
629304 - O-RING More informationQuantity required : 1 |
||||||
|
60 |
629269 - O-RING More informationQuantity required : 1 |
