Vehicle Exploded View - PIAGGIO VU TRACKMASTER ATV 400 Trackmaster 400 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

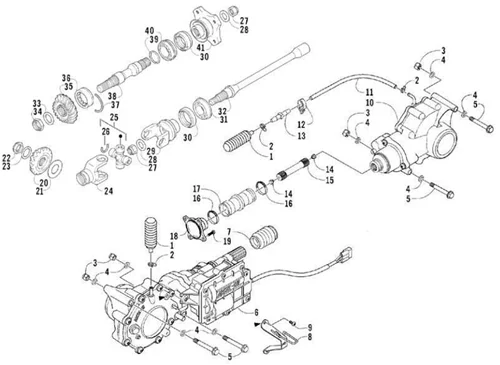

Moteur : 01.26 TRANSMISSION COMPLÈTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/335/Trackmaster_400_2006_01.26.PNG)
1 |
629211 - MANCHON More informationQuantity required : 2 |
||||||
|
2 |
629212 - COLLIER More informationQuantity required : 4 |
||||||
|
3 |
628919 - ECROU More informationQuantity required : 4 |
||||||
|
4 |
629166 - RONDELLE More informationQuantity required : 8 |
||||||
|
5 |
629215 - VIS More informationQuantity required : 4 |
||||||
|
6 |
629216 - *OITE ENGRENAGE More informationQuantity required : 1 |
||||||
|
7 |
629603 - MANCHON More informationQuantity required : 1 |
||||||
|
8 |
629218 - PLAQUE More informationQuantity required : 1 |
||||||
|
9 |
629241 - VIS More informationQuantity required : 3 |
||||||
|
10 |
629220 - BOITE ENGRENAGE More informationQuantity required : 1 |
||||||
|
11 |
629221 - TUYAU More informationQuantity required : 1 |
||||||
|
13 |
629223 - RACCORD More informationQuantity required : 1 |
||||||
|
14 |
629224 - TAMPON More informationQuantity required : 2 |
||||||
|
15 |
629225 - SHAFT PROPELLER More informationQuantity required : 1 |
||||||
|
16 |
629233 - COLLIER More informationQuantity required : 2 |
||||||
|
17 |
629227 - MANCHON More informationQuantity required : 1 |
||||||
|
18 |
629228 - FLANGE, BEARING More informationQuantity required : 1 |
||||||
|
19 |
628998 - VIS More informationQuantity required : 4 |
||||||
|
20 |
629778 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
21 |
629779 - SHIM More informationQuantity required : 1 |
||||||
|
22 |
629780 - ECROU More informationQuantity required : 1 |
||||||
|
23 |
629781 - RONDELLE More informationQuantity required : 1 |
||||||
|
24 |
629782 - YOKE PROPELLER More informationQuantity required : 1 |
||||||
|
25 |
629783 - JOINT, UNIVERSAL More informationQuantity required : 1 |
||||||
|
26 |
629784 - JOINT More informationQuantity required : 4 |
||||||
|
27 |
629785 - ECROU More informationQuantity required : 2 |
||||||
|
28 |
629786 - RONDELLE More informationQuantity required : 1 |
||||||
|
29 |
629787 - YOKE PROPELLER More informationQuantity required : 1 |
||||||
|
30 |
629788 - JOINT SPIE More informationQuantity required : 2 |
||||||
|
31 |
629789 - DOUILLE More informationQuantity required : 1 |
||||||
|
32 |
629790 - SHAFT SECONDARY More informationQuantity required : 1 |
||||||
|
33 |
629791 - RONDELLE More informationQuantity required : 1 |
||||||
|
34 |
629792 - ECROU More informationQuantity required : 1 |
||||||
|
35 |
629793 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
36 |
629794 - DOUILLE More informationQuantity required : 1 |
||||||
|
37 |
629795 - JOINT More informationQuantity required : 1 |
||||||
|
38 |
629796 - SHAFT SECONDARY More informationQuantity required : 1 |
||||||
|
39 |
629809 - SHIM More informationQuantity required : 1 |
||||||
|
39 |
629808 - SHIM More informationQuantity required : 1 |
||||||
|
39 |
629807 - SHIM More informationQuantity required : 1 |
||||||
|
39 |
629806 - SHIM More informationQuantity required : 1 |
||||||
|
39 |
629805 - SHIM More informationQuantity required : 1 |
||||||
|
39 |
629804 - SHIM More informationQuantity required : 1 |
||||||
|
39 |
629803 - SHIM More informationQuantity required : 1 |
||||||
|
39 |
629802 - SHIM More informationQuantity required : 1 |
||||||
|
39 |
629801 - SHIM More informationQuantity required : 1 |
||||||
|
39 |
629800 - SHIM More informationQuantity required : 1 |
||||||
|
39 |
629799 - SHIM More informationQuantity required : 1 |
||||||
|
39 |
629798 - SHIM More informationQuantity required : 1 |
||||||
|
39 |
629797 - SHIM More informationQuantity required : 1 |
||||||
|
40 |
629810 - DOUILLE More informationQuantity required : 1 |
||||||
|
41 |
629811 - FLANGE, OUTPUT More informationQuantity required : 1 |
