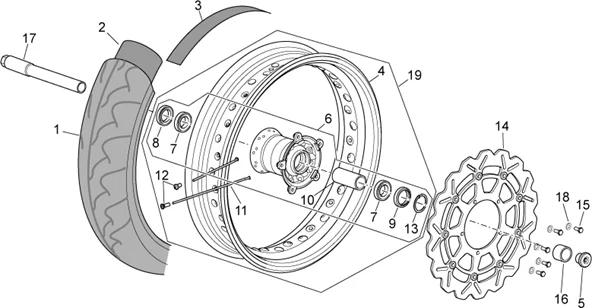

Chassis : 28.22 ROUE AV.II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/633/SXV_550_Pikes_Peak_2009_28.22.PNG)
1 |
AP9100530 - PNEUMATICO ANTER. 120/70 17" More informationQuantity required : 1 |
||||||
|
2 |
AP8109306 - CAMERA D'ARIA ANTERIORE 17" More informationQuantity required : 1 |
||||||
|
3 |
AP8109309 - FLAP RUOTA POSTERIORE 17" More informationQuantity required : 1 |
||||||
|
4 |
AP9100561 - CERCHIO RUOTA ANT. 3,5X17" More informationQuantity required : 1 |
||||||
|
5 |
AP9100171 - TAPPO M22 More informationQuantity required : 1 |
||||||
|
6 |
AP9100225 - ASSIEME MOZZO RUOTA ANTERIORE More informationQuantity required : 1 |
||||||
|
7 |
831615 - ROULEMENT More informationQuantity required : 2 |
||||||
|
8 |
AP9100228 - ANELLO DI TENUTA D.28 D.42 SP7 More informationQuantity required : 1 |
||||||
|
9 |
AP9100227 - ANELLO DI TENUTA D.32 D.42 SP7 More informationQuantity required : 1 |
||||||
|
10 |
AP9100226 - DISTANZIALE INT.L=69,7 More informationQuantity required : 1 |
||||||
|
11 |
AP9100106 - RAGGIO RUOTA ANTERIORE More informationQuantity required : 36 |
||||||
|
12 |
AP8108672 - NIPPLES More informationQuantity required : 36 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/7/img/97067.jpg)
13 |
AP8121334 - BAGUE; More informationQuantity required : 1 |
||||||
|
14 |
AP9100528 - DISCO FRENO ANT.FLOTT.D.320 More informationQuantity required : 1 |
||||||
|
15 |
AP8150070 - VIS TE M 6 X 16 More informationQuantity required : 5 |
||||||
|
16 |
AP9100229 - DISTANZIALE ESTERNO L=26,3 More informationQuantity required : 1 |
||||||
|
17 |
AP9100230 - PERNO RUOTA ANTERIORE L=221,5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
18 |
658830 - RONDELLE More informationQuantity required : 5 |
||||||
|
19 |
851064 - ROUE AV NUE More informationQuantity required : 1 |
