Vehicle Exploded View - APRILIA SXV 550 Pikes Peak 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

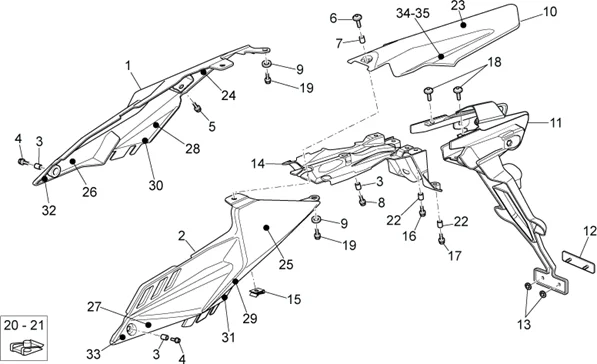

Chassis : 28.15 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/633/SXV_550_Pikes_Peak_2009_28.15.PNG)
1 |
REAR FLANK -RIGHT- "PIAGGIO GENUINE PART" APRILIA 450-550 SXV, RXV -AP8184497- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/3/0/img/97130.jpg)
2 |
REAR FLANK -LEFT- "PIAGGIO GENUINE PART" APRILIA 450-550 SXV, RXV -AP8184496 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
3 |
AP9100053 - BUSSOLA COLLETTO D16-D10-SP3.5 More informationQuantity required : 3 |
||||||
|
4 |
AP9100645 - VITE TE FLANGIATA M6X16 INOX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
5 |
AP8152280 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
6 |
AP8152117 - VIS More informationQuantity required : 1 |
||||||
|
7 |
AP9100594 - BUSSOLA COLLETTO D16-D10-SP7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
8 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
9 |
AP8150015 - RONDELLE More informationQuantity required : 2 |
||||||
|
10 |
AP8156337 - GARDE-BOUE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/3/8/1/img/97381.jpg)
11 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" APRILIA 450-550 RXV, SXV -AP9100610 More informationQuantity required : 1 |
||||||
|
12 |
AP8112202 - CATADIOPTRE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
13 |
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450 More informationQuantity required : 1 |
||||||
|
14 |
AP9100288 - SOTTOCODA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
15 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
|
16 |
AP8152279 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
17 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
18 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
19 |
AP8152277 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
20 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 4 |
||||||
|
21 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
22 |
AP8121795 - DOUILLE EN T More informationQuantity required : 2 |
||||||
|
23 |
856363 - DECALCO More informationQuantity required : 1 |
||||||
|
24 |
DECAL- ON REAR RIGHT COWL "PIAGGIO GENUINE PART" APRILIA 450-550 SXV, RXV -856352- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/8/3/9/img/96839.jpg)
25 |
DECAL- ON REAR LEFT COWL "PIAGGIO GENUINE PART" APRILIA 450-550 SXV, RXV -856353 More informationQuantity required : 1 |
||||||
|
26 |
894644 - DECALCO More informationQuantity required : 1 |
||||||
|
27 |
894645 - DECALCO More informationQuantity required : 1 |
||||||
|
28 |
894648 - DECALCO More informationQuantity required : 1 |
||||||
|
29 |
894649 - DECALCO More informationQuantity required : 1 |
||||||
|
30 |
894650 - DECALCO More informationQuantity required : 1 |
||||||
|
31 |
894651 - DECALCO More informationQuantity required : 1 |
||||||
|
32 |
894646 - DECALCO More informationQuantity required : 1 |
||||||
|
33 |
894647 - DECALCO More informationQuantity required : 1 |
||||||
|
34 |
856364 - DECALCO More informationQuantity required : 1 |
||||||
|
35 |
856365 - DECALCO More informationQuantity required : 1 |
