Vehicle Exploded View - GILERA SURFER 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

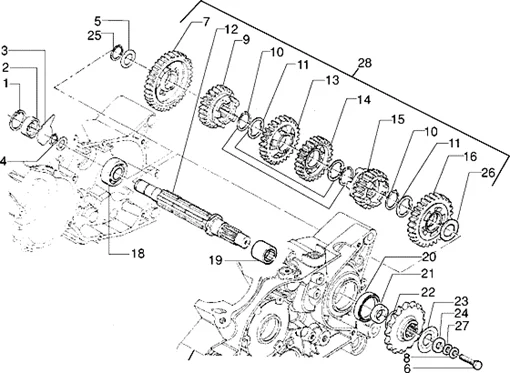

Moteur : T9 ARBRE SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/651/Surfer_1998-2005_T9.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/6/7/8/img/73678.jpg)
1 |
SNAP RING FOR TORQUE DRIVER "PIAGGIO GENUINE PART" FLY 125-150, LIBERTY 125-150, MP3 125-250-300-400-500/125 VESPA LX, GTS, VESPA-S -006628- More informationQuantity required : 2 |
||||||
7 |
432589 - ENGRENAGE PREMIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
8 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 1 |
||||||
|
11 |
942093 - RONDELLE EPAULEMENT More informationQuantity required : 3 |
||||||
|
14 |
432592 - ENGRENAGE EX-439592 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/7/3/img/139373.jpg)
18 |
0028005 - ROULEMENT More informationQuantity required : 1 |
||||||
|
19 |
432621 - CAGE A ROULEAU More informationQuantity required : 1 |
||||||
|
20 |
434065 - PARE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/6/2/0/img/78620.jpg)
22 |
GEARBOX OUTPUT SPROCKET (12 TEETH) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, GSM, H@K, ZULU 1998>2005 -434208- More informationQuantity required : 1 |
||||||
|
23 |
433843 - RESSORT DIAPHRAGME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/2/img/63822.jpg)
25 |
006632 - ANNEAU ELAST. S00663200 More informationQuantity required : 1 |
||||||
|
28 |
433864 - ARBRE SECONDAIRE More informationQuantity required : 1 |
