Vehicle Exploded View - GILERA SURFER 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

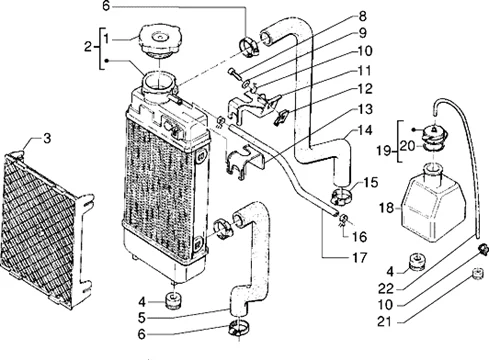

Moteur : T15 RADIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/651/Surfer_1998-2005_T15.PNG)
1 |
343591 - BOUCHON RADIATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/4/5/2/img/92452.jpg)
1 |
COOLANT RADIATOR CAP "PIAGGIO GENUINE PART" GILERA GSM, H@K, ZULU, SMT, RCR 1998>2005 -814371- More informationQuantity required : 1 |
||||||
|
2 |
942951 - RADIATEUR More informationQuantity required : 1 |
||||||
|
5 |
942531 - DURITE RADIATEUR INF More informationQuantity required : 1 |
||||||
|
6 |
812126 - COLLIER More informationQuantity required : 1 |
||||||
|
8 |
810911 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
9 |
013880 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
12 |
006966 - RONDELLE S00696600 More informationQuantity required : 1 |
||||||
|
14 |
942530 - TUYAU More informationQuantity required : 1 |
||||||
|
15 |
812126 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/6/0/5/img/93605.jpg)
18 |
EXPANSION TANK "PIAGGIO GENUINE PART" GILERA 50 GSM, H@K, ZULU, EAGLET 1998>2005 -941120- More informationQuantity required : 1 |
