Vehicle Exploded View - GILERA SURFER 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

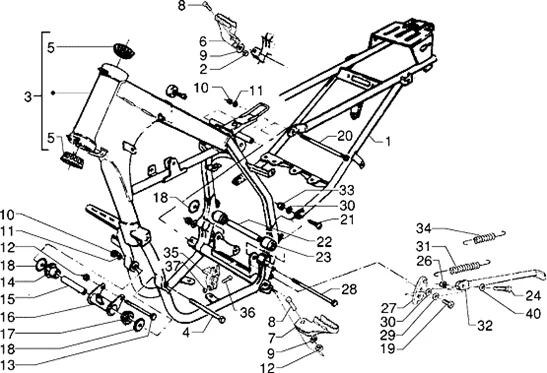

Châssis : T16 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/651/Surfer_1998-2005_T16.PNG)
2 |
002418 - ECROU More informationQuantity required : 1 |
||||||
|
2 |
002418 - ECROU More informationQuantity required : 1 |
||||||
|
5 |
348744 - ROULEMENT More informationQuantity required : 2 |
||||||
|
6 |
812508 - REPOSE PIED DRT More informationQuantity required : 1 |
||||||
|
7 |
812509 - REPOSE PIED GAUCHE More informationQuantity required : 1 |
||||||
|
8 |
030074 - BOULON S03007400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
9 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
||||||
|
10 |
002418 - ECROU More informationQuantity required : 1 |
||||||
|
10 |
002418 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/8/img/65348.jpg)
11 |
012538 - RONDELLE S01253800 More informationQuantity required : 1 |
||||||
|
12 |
002418 - ECROU More informationQuantity required : 1 |
||||||
|
12 |
002418 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/2/img/65382.jpg)
24 |
SCREW (10X45) "PIAGGIO GENUINE PARTS" COMMON TO ALL THE RANGE -015578- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/5/img/65375.jpg)
26 |
015235 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
29 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 1 |
||||||
|
30 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/3/3/8/img/92338.jpg)
31 |
812882 - RESSORT More informationQuantity required : 1 |
||||||
|
33 |
002418 - ECROU More informationQuantity required : 1 |
||||||
|
33 |
002418 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
37 |
020105 - ECROU S02010500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
40 |
016626 - RONDELLE More informationQuantity required : 1 |
