Vehicle Exploded View - APRILIA SR 50 H20 1994-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

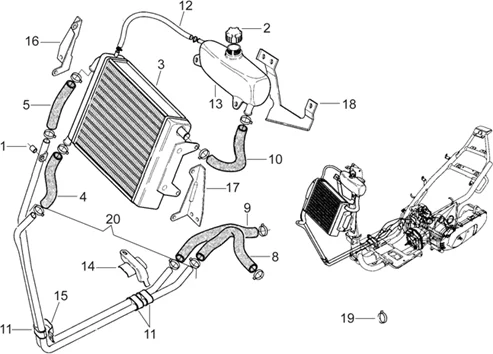

Chassis : 28.06 RADIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/576/SR_50_H20_1994-1996_28.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/3/5/img/46935.jpg)
1 |
AP8121766 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/1/6/img/45116.jpg)
2 |
AP8101912 - BOUCHON RADIATEUR SS RENIFLARD More informationQuantity required : 1 |
||||||
3 |
AP8202406 - RADIATORE GREZZO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
12 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544- More informationQuantity required : 1 |
||||||
|
13 |
AP8238861 - VASE D'EXPANSION; More informationQuantity required : 1 |
||||||
|
19 |
AP8201807 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/8/img/72128.jpg)
19 |
AP8201169 - COLLIER CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/2/img/71172.jpg)
19 |
AP8102349 - COLLIER CLIC, BLANC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/9/img/71169.jpg)
19 |
AP8102159 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/8/img/71158.jpg)
19 |
AP8101722 - COLLIER CLIC More informationQuantity required : 1 |
||||||
|
19 |
AP8201808 - GUIDE-CABLE More informationQuantity required : 1 |
