Vehicle Exploded View - APRILIA SR 50 H20 1994-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

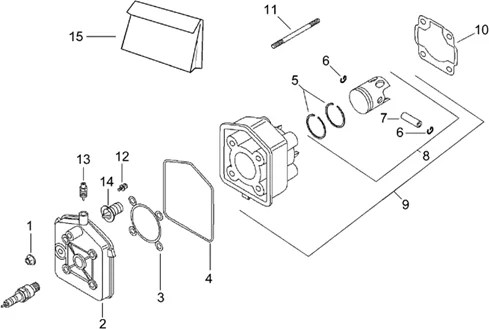

Moteur : 29.12 GROUPE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/576/SR_50_H20_1994-1996_29.12.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/6/7/img/55867.jpg)
1 |
AP8206491 - ECROU BRIDE More informationQuantity required : 4 |
||||||
2 |
Culasse |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/9/0/8/img/55908.jpg)
3 |
O'RING GASKET FOR CYLINDER HEAD (INNER) "PIAGGIO GENUINE PART" APRILIA 50 GULLIVER, RALLY, SONIC LIQUIDE -AP8206588- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/9/0/7/img/55907.jpg)
4 |
AP8206587 - JOINT TORIQUE CUL. EXT. More informationQuantity required : 1 |
||||||
|
5 |
AP8206120 - SEGMENTS - SERIE More informationQuantity required : 1 |
||||||
|
5 |
AP8206220 - SEGMENTS - SERIE More informationQuantity required : 1 |
||||||
|
6 |
AP8206176 - BAGUE DE BUTEE AXE More informationQuantity required : 2 |
||||||
|
7 |
AP8206174 - AXE More informationQuantity required : 1 |
||||||
|
8 |
AP8206592 - PISTON CPL. More informationQuantity required : 1 |
||||||
|
8 |
AP8206593 - PISTON CPL. More informationQuantity required : 1 |
||||||
|
9 |
AP8206590 - CYLINDRE AV.PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/9/6/img/55896.jpg)
10 |
AP8206575 - JOINT BASE CYLINDRE More informationQuantity required : 1 |
||||||
|
11 |
AP8206493 - PRISIONNIER CULASSE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/3/3/img/61033.jpg)
12 |
AP8502559 - VIS CH+RONDELLE EV. More informationQuantity required : 1 |
||||||
|
13 |
AP8206579 - RACC.RENIFL. CULASSE More informationQuantity required : 1 |
||||||
|
14 |
AP8206383 - THERMOSTAT More informationQuantity required : 1 |
||||||
|
15 |
AP8206784 - JOINTS-JEU More informationQuantity required : 1 |
