Vehicle Exploded View - APRILIA SR 50 H20 1994-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

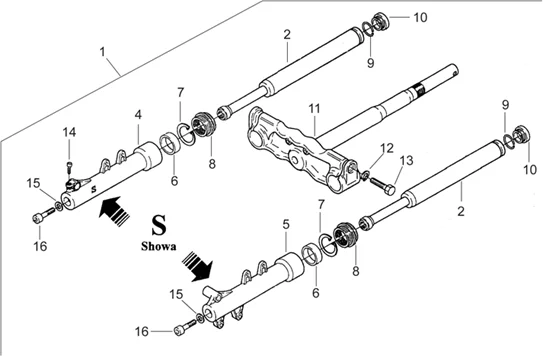

Chassis : 28.03 FOURCHE SHOWA
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/576/SR_50_H20_1994-1996_28.03.PNG)
9 |
AP8203702 - BAGUE DE BUTEE More informationQuantity required : 2 |
||||||
|
10 |
AP8203777 - BOUCHON; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/1/2/8/img/57128.JPG)
11 |
AP8223004 - BASE AVEC TUBE More informationQuantity required : 1 |
||||||
|
14 |
AP8203571 - VIS More informationQuantity required : 1 |
||||||
|
15 |
AP8203572 - RONDELLE ETANCHEITE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
16 |
600123 - BOULON M8X30 More informationQuantity required : 2 |
