Vehicle Exploded View - MOTO-GUZZI SP 1000 SP III 1000 1989-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

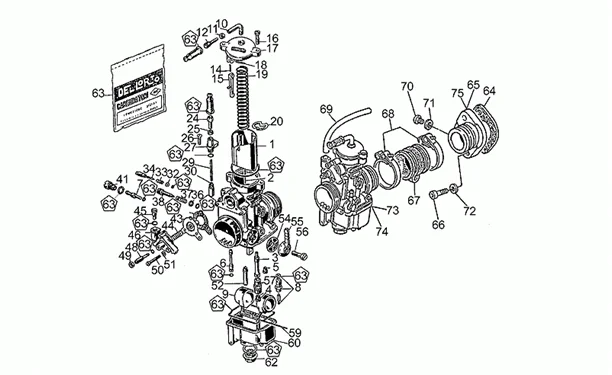

Moteur : 34.28 CARBURATEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/515/SP_III_1000_1989-1994_34.28.PNG)
3 |
GU30935510 - GICLEUR AR268 More informationQuantity required : 1 |
||||||
|
4 |
GU28935711 - GICLEUR PRINCIPAL More informationQuantity required : 1 |
||||||
|
5 |
GU66935910 - GICLEUR MINIMUM 50 More informationQuantity required : 1 |
||||||
|
10 |
GU49938900 - TUYAU More informationQuantity required : 1 |
||||||
|
11 |
GU19938880 - ECROU More informationQuantity required : 1 |
||||||
|
12 |
GU53937200 - VIS TENDEUR DE FIL More informationQuantity required : 1 |
||||||
|
16 |
GU14934650 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/5/5/img/129155.jpg)
24 |
GU12937200 - VIS TENDEUR DE FIL More informationQuantity required : 1 |
||||||
|
26 |
GU13937900 - VIS More informationQuantity required : 1 |
||||||
|
27 |
GU17937450 - COUVERCLE SOUPAPE More informationQuantity required : 1 |
||||||
|
29 |
GU13937600 - RESSORT More informationQuantity required : 1 |
||||||
|
30 |
GU13937800 - SOUPAPE DE DEMARRAGE More informationQuantity required : 1 |
||||||
|
32 |
GU65933700 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
|
33 |
GU13936300 - RESSORT More informationQuantity required : 1 |
||||||
|
36 |
GU14931650 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
37 |
152608 - VIS More informationQuantity required : 1 |
||||||
|
43 |
GU14931050 - MEMBRANE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/0/7/img/129307.jpg)
44 |
GU14936950 - RESSORT More informationQuantity required : 1 |
||||||
|
46 |
GU14936850 - COUVERCLE More informationQuantity required : 1 |
||||||
|
51 |
GU13932900 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/0/9/img/131909.JPG)
54 |
GU43934000 - FILTRE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/8/img/129168.jpg)
59 |
GU13933100 - AXE DE FLOTTEUR More informationQuantity required : 1 |
||||||
|
63 |
GU28939911 - JOINTS DE SERIE CARBURATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/9/2/img/125592.jpg)
64 |
GU28115560 - JOINT MOTO-GUZZI More informationQuantity required : 2 |
||||||
|
66 |
GU98622325 - VIS M6X25 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/0/9/img/129209.jpg)
67 |
CARB MANIFOLD "PIAGGIO GENUINE PART" MOTO-GUZZI 850 LE MANS, T5, 1000 CALIFORNIA , SP, STRADA -GU14114350- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/1/2/img/132612.jpg)
68 |
GU93305057 - COLLIER 59,5/55 More informationQuantity required : 4 |
||||||
|
70 |
GU98326009 - VIS More informationQuantity required : 2 |
||||||
|
71 |
GU95100116 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
72 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 6 |
