Vehicle Exploded View - MOTO-GUZZI SP 1000 SP III 1000 1989-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

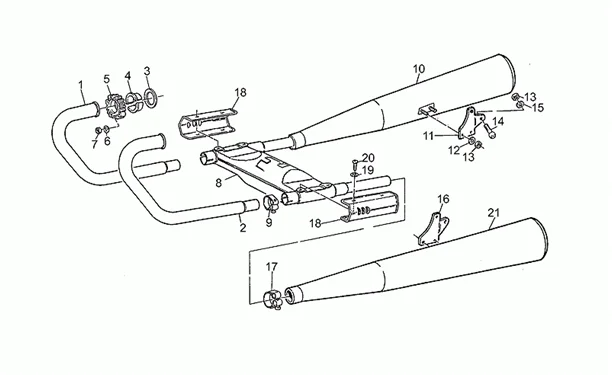

Chassis : 33.32 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/515/SP_III_1000_1989-1994_33.32.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/1/img/125501.jpg)
3 |
EXHAUST GASKET- ON HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU90718370- More informationQuantity required : 2 |
||||||
4 |
GU14121200 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
6 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
7 |
GU92781081 - ECROU More informationQuantity required : 4 |
||||||
|
9 |
GU30123430 - COLLIER More informationQuantity required : 2 |
||||||
|
11 |
GU30128610 - BRIDE DROITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
12 |
AP8150017 - RONDELLE More informationQuantity required : 4 |
||||||
|
13 |
GU92630508 - ECROU More informationQuantity required : 6 |
||||||
|
14 |
GU98622425 - VIS M8X25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
15 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/1/6/img/129216.jpg)
17 |
SILENCER CLIP "PIAGGIO GENUINE PART" MOTO-GUZZI 850 T3, 1000 CALIFORNIA, LE MANS, SP -GU14123400- More informationQuantity required : 2 |
||||||
|
19 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
20 |
GU98326009 - VIS More informationQuantity required : 4 |
