Vehicle Exploded View - MOTO-GUZZI SP 1000 SP III 1000 1989-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

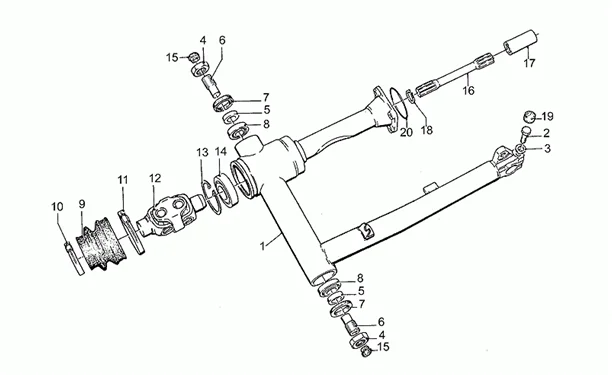

Chassis : 33.13 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/515/SP_III_1000_1989-1994_33.13.PNG)
2 |
GU98052535 - VIS More informationQuantity required : 1 |
||||||
|
3 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 1 |
||||||
|
4 |
GU14547800 - ECROU More informationQuantity required : 2 |
||||||
|
5 |
GU12547200 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
6 |
GU14547001 - PIVOT More informationQuantity required : 2 |
||||||
|
8 |
GU92249217 - ROULEMENT More informationQuantity required : 2 |
||||||
|
9 |
GU18548000 - COLLIER DE PROTECTION More informationQuantity required : 1 |
||||||
|
10 |
GU93305060 - COLLIER 60X62X10 More informationQuantity required : 1 |
||||||
|
12 |
GU30328031 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/4/2/img/132142.jpg)
13 |
GU90272062 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
|
14 |
GU92204230 - ROULEMENT A BILLES 30X62X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/1/img/132571.jpg)
15 |
GU93180105 - BOUCHON More informationQuantity required : 2 |
||||||
|
17 |
GU12327700 - MANCHON More informationQuantity required : 1 |
||||||
|
18 |
GU90271020 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/8/img/132248.jpg)
20 |
GU90706584 - JOINT 58,42X2,62 More informationQuantity required : 1 |
