Vehicle Exploded View - MOTO-GUZZI SP 1000 SP II 1000 1983-1988
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

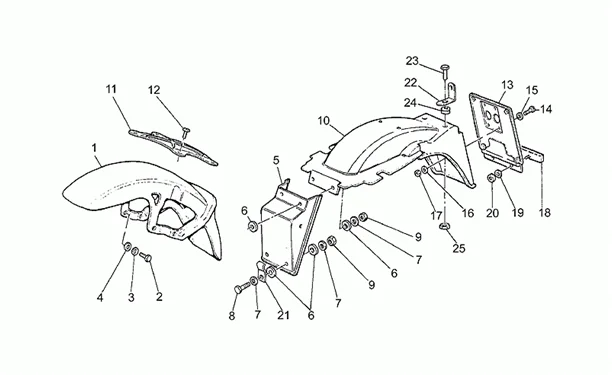

Chassis : 33.16 GARDE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/514/SP_II_1000_1983-1988_33.16.PNG)
2 |
GU98054420 - VIS M8X20 More informationQuantity required : 4 |
||||||
|
3 |
GU95000208 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
4 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
5 |
GU14438750 - PARE BOUE AR. More informationQuantity required : 1 |
||||||
|
6 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 8 |
||||||
|
7 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 4 |
||||||
|
8 |
GU98054320 - VIS M6X20 More informationQuantity required : 2 |
||||||
|
9 |
GU92630106 - ECROU M6X1 More informationQuantity required : 4 |
||||||
|
12 |
GU98230816 - VIS More informationQuantity required : 4 |
||||||
|
15 |
GU95000204 - RONDELLE More informationQuantity required : 4 |
||||||
|
16 |
GU95129080 - RONDELLE More informationQuantity required : 4 |
||||||
|
17 |
GU92602204 - ECROU More informationQuantity required : 4 |
||||||
|
19 |
GU95129080 - RONDELLE More informationQuantity required : 2 |
||||||
|
20 |
GU92602204 - ECROU More informationQuantity required : 2 |
||||||
|
21 |
GU93301313 - GUIDE CABLE More informationQuantity required : 2 |
||||||
|
23 |
GU98326016 - VIS More informationQuantity required : 2 |
||||||
|
24 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
25 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
