Vehicle Exploded View - MOTO-GUZZI SP 1000 SP II 1000 1983-1988
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

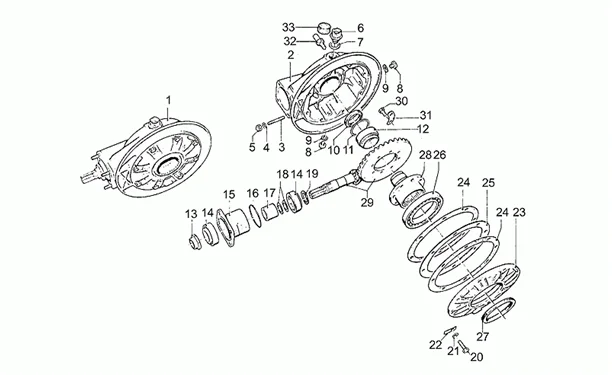

Chassis : 33.04 COUPLE CONIQUE AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/514/SP_II_1000_1983-1988_33.04.PNG)
3 |
GU96508045 - VIS SANS TETE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
4 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
5 |
GU92781081 - ECROU More informationQuantity required : 4 |
||||||
|
6 |
GU28351260 - BOUCHON HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/3/8/img/132738.jpg)
7 |
DRAIN CAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU95100709- More informationQuantity required : 1 |
||||||
|
8 |
GU95980214 - BOUCHON NIVEAU HUILE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/9/7/img/129097.jpg)
9 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" POUR MOTO-GUZZI 850 CALIFORNIA 1985>, 1100 CALIFORNIA 1994>, 750 V7 2008>, NEVADA 2012>, V9 2016>, V11 2001>, V65 1982> -GU10528900- More informationQuantity required : 2 |
||||||
|
10 |
GU90413850 - BAGUE D'ETANCHEITE 38X50X7 More informationQuantity required : 1 |
||||||
|
11 |
GU12351100 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
12 |
2B006088R - ROULEMENT A AGUILLES More informationQuantity required : 1 |
||||||
|
12 |
2B006088R - ROULEMENT A AGUILLES More informationQuantity required : 1 |
||||||
|
13 |
GU30356760 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/2/7/img/132427.jpg)
14 |
BEARING FOR TRANSMISSION SHAFT (24X5) "PIAGGIO GENUINE PART" MOTO-GUZZI DAYTONA, NEVADA, V50, V65, CALIFORNIA, BREVA -GU92249227- More informationQuantity required : 2 |
||||||
|
15 |
GU18352400 - FLASQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/8/img/132248.jpg)
16 |
GU90706584 - JOINT 58,42X2,62 More informationQuantity required : 2 |
||||||
|
17 |
GU18355100 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
18 |
GU12355202 - RONDELLE AJUSTEM.0,1 MM More informationQuantity required : 2 |
||||||
|
18 |
GU12355203 - RONDELLE AJUSTEM.0,15 MM More informationQuantity required : 2 |
||||||
|
19 |
GU19355325 - CALE 1,5 MM More informationQuantity required : 2 |
||||||
|
19 |
GU19355322 - CALE 1,2 MM More informationQuantity required : 2 |
||||||
|
19 |
GU19355320 - CALE 1 MM More informationQuantity required : 2 |
||||||
|
20 |
GU98054425 - VIS M8X25 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
21 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 8 |
||||||
|
22 |
GU95187008 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
23 |
GU17350400 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/3/2/img/129332.jpg)
24 |
GU17350700 - JOINT More informationQuantity required : 2 |
||||||
|
25 |
GU17355402 - CALE 0,9 MM More informationQuantity required : 1 |
||||||
|
25 |
GU17355408 - CALE 1,2 MM More informationQuantity required : 1 |
||||||
|
25 |
GU17355412 - CALE 1,5 MM More informationQuantity required : 1 |
||||||
|
25 |
GU17355410 - CALE 1,3 MM More informationQuantity required : 1 |
||||||
|
25 |
GU17355400 - CALE 0,8 MM More informationQuantity required : 1 |
||||||
|
25 |
GU17355406 - CALE 1,1 MM More informationQuantity required : 1 |
||||||
|
25 |
GU17355404 - CALE 1 MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/8/2/img/132382.jpg)
26 |
TRANSMISSION BEARING (70X10X13) "PIAGGIO GENUINE PART" MOTO-GUZZI DAYTONA, NEVADA, V50, V65, CALIFORNIA, BREVA -GU92201070- More informationQuantity required : 1 |
||||||
|
27 |
GU90417085 - BAGUE D'ETANCHEITE 70X85X8 More informationQuantity required : 1 |
||||||
|
28 |
GU17351400 - BRIDE DE TRACTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/3/4/img/129134.jpg)
30 |
GU12356300 - VIS More informationQuantity required : 8 |
||||||
|
31 |
GU12356400 - PLAQUETTE DE SECURITE More informationQuantity required : 4 |
||||||
|
32 |
GU28555200 - PIVOT More informationQuantity required : 1 |
