Vehicle Exploded View - MOTO-GUZZI SP 1000 SP II 1000 1983-1988
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

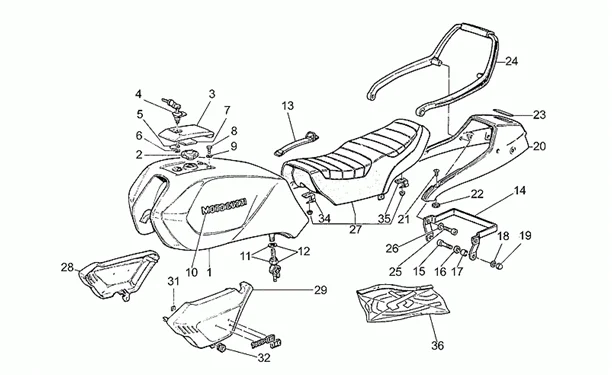

Chassis : 33.03 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/514/SP_II_1000_1983-1988_33.03.PNG)
1 |
RESERVOIR |
||||||
|
2 |
GU28103946 - BOUCHON RESERVOIR More informationQuantity required : 1 |
||||||
|
3 |
GU141040551 - COUVERCLE LAT CULASS More informationQuantity required : 1 |
||||||
|
4 |
|
||||||
|
5 |
GU18105001 - LOQUETEAU More informationQuantity required : 1 |
||||||
|
6 |
GU19104950 - COLLIER More informationQuantity required : 1 |
||||||
|
7 |
GU19104336 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
8 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/4/7/img/132747.jpg)
9 |
GU95129100 - RONDELLE ELASTIQUE 5,3X10X0,5 More informationQuantity required : 2 |
||||||
|
10 |
"Plaquette ""Moto Guzzi""" |
||||||
|
11 |
Robinet ess.d. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/1/7/img/129317.jpg)
12 |
LEFT FUEL TAP "PIAGGIO GENUINE PART" MOTO-GUZZI 850 T3, T5, 1000 CALIFORNIA, GT, LE-MANS, SP -GU17105461- More informationQuantity required : 1 |
||||||
|
13 |
GU14102600 - ELASTIQUE DE FIXATION More informationQuantity required : 1 |
||||||
|
14 |
GU28468400 - SUPPORT More informationQuantity required : 1 |
||||||
|
15 |
GU98822425 - VIS More informationQuantity required : 2 |
||||||
|
16 |
GU95004208 - RONDELLE More informationQuantity required : 2 |
||||||
|
17 |
GU91180804 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
18 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
19 |
GU92781081 - ECROU More informationQuantity required : 2 |
||||||
|
20 |
CARENAGE ARR |
||||||
|
21 |
GU98326014 - VIS More informationQuantity required : 2 |
||||||
|
22 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
23 |
MARQUE |
||||||
|
24 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
25 |
GU98682420 - VIS TCEI M8X20 More informationQuantity required : 2 |
||||||
|
26 |
GU95004208 - RONDELLE More informationQuantity required : 2 |
||||||
|
27 |
Selle cpl. |
||||||
|
28 |
COUVERCLE BATTERIE |
||||||
|
29 |
COUVERCLE BATTERIE |
||||||
|
31 |
GU39922200 - CLIPS More informationQuantity required : 8 |
||||||
|
32 |
GU91551082 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
34 |
CHARNIERE |
||||||
|
35 |
GU28461301 - CHARNIERE More informationQuantity required : 1 |
||||||
|
36 |
|
