Vehicle Exploded View - APRILIA SHIVER 750 GT 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

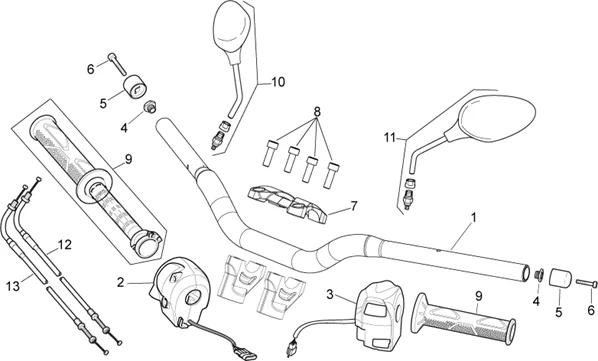

Chassis : 28.19 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/740/Shiver_750_GT_2009_28.19.PNG)
1 |
HANDLEBAR Ø 28 "PIAGGIO GENUINE PART" APRILIA 750 SHIVER -851626- More informationQuantity required : 1 |
||||||
|
1 |
HANDLEBAR Ø 22 "PIAGGIO GENUINE PART" APRILIA 750 SHIVER -890852- More informationQuantity required : 1 |
||||||
|
2 |
893622 - DEVIATEUR FEUX DTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/4/3/5/img/42435.jpg)
3 |
LIGHTS SWITCH - LEFT "PIAGGIO GENUINE PART" APRILIA 750-900 DORSODURO, SHIVER, 1200 DORSODURO, CAPONORD -896107- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/1/img/71471.jpg)
4 |
AP8121520 - TERM.POIDS ANTIVIB. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/6/img/71226.jpg)
5 |
BAR ENDS - "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 1000-1100 TUON/MOTO-GUZZI BREVA, STELVIO, V7, V9 -AP8104509 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/3/8/img/50938.jpg)
6 |
AP8152003 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/6/0/img/39160.jpg)
7 |
HANDLEBAR HALF CLAMP (UPPER) "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, DORSODURO, 1200 CAPONORD, DORSODURO -851628 More informationQuantity required : 1 |
||||||
|
7 |
851901 - CAVALIER SUP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/4/0/img/51040.jpg)
8 |
AP8152486 - VITE TCC M8X25 INOX More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/6/9/img/46369.jpg)
9 |
THROTTLE HANDLE+ HAND GRIPS "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, 650 PEGASO, 1000 CAPONORD, FUTURA -AP8118619- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/2/img/71242.jpg)
10 |
MIRROR- RIGHT "PIAGGIO GENUINE PART" APRILIA 750 SHIVER -AP8104921 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/3/img/71243.jpg)
11 |
MIRROR- LEFT "PIAGGIO GENUINE PART" APRILIA 750 SHIVER -AP8104922 More informationQuantity required : 1 |
||||||
|
12 |
85173R - CABLE OUVERTURE GAZ More informationQuantity required : 1 |
||||||
|
13 |
85174R - CABLE FERMETURE GAZ More informationQuantity required : 1 |
