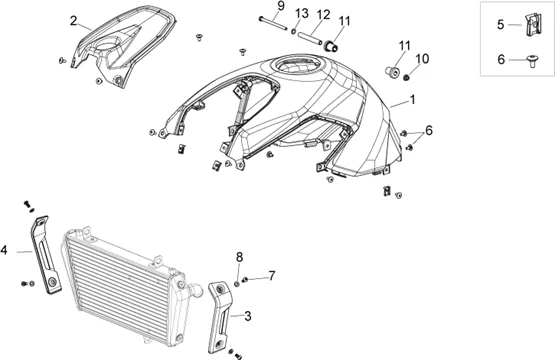

Chassis : 28.11 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/740/Shiver_750_GT_2009_28.11.PNG)
1 |
85166100XE4 - CACHE-RESERVOIR, SILVER More informationQuantity required : 1 |
||||||
|
1 |
85166100XN7 - CACHE-RESERVOIR, NOIR More informationQuantity required : 1 |
||||||
|
1 |
85166100XR5 - CACHE-RESERVOIR, ROUGE More informationQuantity required : 1 |
||||||
|
2 |
2B003881 - COUVERCLE More informationQuantity required : 1 |
||||||
|
2 |
2B003881 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/7/4/5/img/200745.jpg)
3 |
PROTECTION DE RADIATEUR (PAIRE) ORIGINE PIAGGIO APRILIA 750 SHIVER 2007>, 900 SHIVER 2017> -851649 More informationQuantity required : 1 |
||||||
|
3 |
PROTECTION DE RADIATEUR (PAIRE) ORIGINE PIAGGIO APRILIA 750 SHIVER 2007>, 900 SHIVER 2017> -851649 More informationQuantity required : 1 |
||||||
|
4 |
PROTECTION DE RADIATEUR (PAIRE) ORIGINE PIAGGIO APRILIA 750 SHIVER 2007>, 900 SHIVER 2017> -851649 More informationQuantity required : 1 |
||||||
|
4 |
PROTECTION DE RADIATEUR (PAIRE) ORIGINE PIAGGIO APRILIA 750 SHIVER 2007>, 900 SHIVER 2017> -851649 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
6 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/2/0/img/50920.jpg)
7 |
AP8150537 - VITE TBEI M6 X 12 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/6/8/img/50868.jpg)
8 |
AP8150380 - RONDELLE More informationQuantity required : 4 |
||||||
|
9 |
AP8150459 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
|
11 |
AP8123934 - CAOUTCHOUC; More informationQuantity required : 2 |
||||||
|
12 |
AP8134419 - DOUILLE ATTACHE RESERVOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
13 |
AP8150014 - RONDELLE More informationQuantity required : 1 |
