Vehicle Exploded View - APRILIA SHIVER 750 GT 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

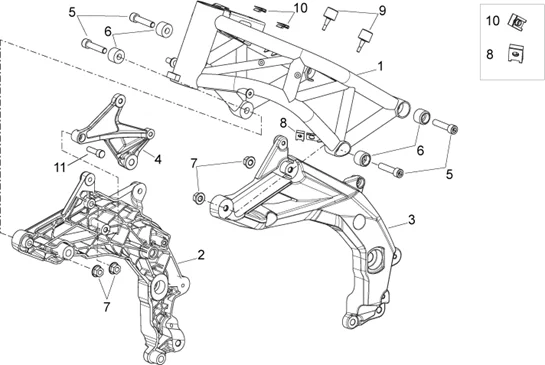

Chassis : 28.01 CHASSIS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/740/Shiver_750_GT_2009_28.01.PNG)
1 |
89860800XEB - CHASSIS More informationQuantity required : 1 |
||||||
|
2 |
851536 - AILE D More informationQuantity required : 1 |
||||||
|
3 |
85153700XEB - FLANC G.P.GRIS More informationQuantity required : 1 |
||||||
|
4 |
851541 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/4/8/2/img/39482.jpg)
5 |
SCREW - FRONT FRAME FASTENING "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 750-900-1200 DORSODURO -852165 More informationQuantity required : 4 |
||||||
|
6 |
853037 - DOUILLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
7 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
8 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -575268 More informationQuantity required : 1 |
||||||
|
9 |
AP8144277 - TAMPON FIN DE COURSE BEQUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
11 |
AP8150195 - VIS More informationQuantity required : 1 |
