Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM DRD PRO 2005-2008 E2 2ver
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

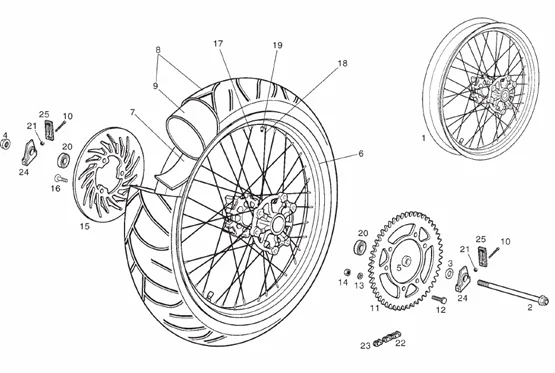

Suspensions - roues : 10 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1029/SENDA_SM_DRD_PRO_2005-2008_E2_2ver_10.png)
1 |
8675600001 - ROUE AR. More informationQuantity required : 1 |
||||||
|
2 |
00H01308201 - AXE ROUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/0/img/63730.jpg)
3 |
FRONT WHEEL WASHER Ø.15 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00032015000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/2/7/img/70327.jpg)
5 |
SPACER- FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 RCR 2011>/APRILIA 50 RX 2011> -867313- More informationQuantity required : 1 |
||||||
|
6 |
00H01306353 - JANTE ARRIERE NUE. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/0/img/63880.JPG)
7 |
00D01303401 - PROTECTEUR DE CHAMBRE A AIR More informationQuantity required : 1 |
||||||
|
8 |
899860 - PNEU AR SAVATECH 130/70X17" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/0/8/img/64508.jpg)
9 |
INNER TUBE "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>2010/APRILIA 50 SX WITH SPOKED WHEELS -00H01309361- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/7/2/img/64472.jpg)
10 |
00H01302491 - VIS More informationQuantity required : 1 |
||||||
|
11 |
86180R - COURONNE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/1/img/63701.jpg)
12 |
00012083001 - BOUL.SER.DISQUE FR.ARR.FEN.95 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
13 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/7/img/63767.jpg)
14 |
00262080022 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/6/6/img/70066.jpg)
15 |
REAR BRAKE DISC "PIAGGIO GENUINE PART" GILERA 50 RCR 2011>/APRILIA 50 RX 2014>2018, SX 2011>2013 -864732- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/9/6/img/64696.jpg)
16 |
SCREW - FOR REAR DISC BRAKE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02401282- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/7/0/img/187870.JPG)
17 |
00H01306731 - RAYON More informationQuantity required : 1 |
||||||
|
18 |
00H01306691 - RAYON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/8/1/5/img/151815.JPG)
19 |
00H01202071 - R-TUERCA RADIO M4X0.7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/8/1/img/67481.jpg)
20 |
REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -601345- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
21 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/5/5/img/64555.jpg)
22 |
CHAIN WITH CONNECTING LINK "PIAGGIO GENUINE PART" APRILIA 50 SX, RX -00H01507201- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/3/img/64533.jpg)
23 |
00H01501212 - ATTACHE RAPIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/9/3/img/64493.jpg)
24 |
CHAIN TENSIONER SLIDE "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01306811- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/8/8/img/64488.jpg)
25 |
REAR WHEEL TENSIONER COVER "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01306171- More informationQuantity required : 1 |
