Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM DRD PRO 2005-2008 E2 2ver
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

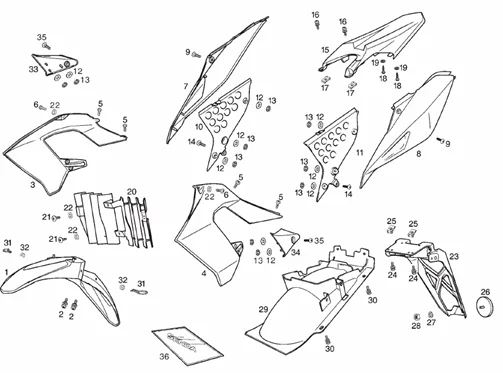

Châssis - parties plastiques - carrosseries : 5 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1029/SENDA_SM_DRD_PRO_2005-2008_E2_2ver_5.png)
1 |
00H007220215 - GARDE-BOUE AVANT RGE More informationQuantity required : 1 |
||||||
|
1 |
00H007220245 - R-GUARDAB.DLNT.AZL.AÐL.SM DRD PRO FRA More informationQuantity required : 1 |
||||||
|
1 |
00H007250215 - R-GUARDAB.DLNT.NG.OM.SM DRD 50CC More informationQuantity required : 1 |
||||||
|
1 |
20H00725021 - GARDE-BOUE AV More informationQuantity required : 1 |
||||||
|
1 |
86386900WG05 - R-GUARDAB.DLNT.AMAR.DRD PRO MALOSSI More informationQuantity required : 1 |
||||||
|
1 |
86507900WB15 - GARDE BOUE AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/0/8/img/65008.jpg)
2 |
SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/5/1/img/64151.jpg)
2 |
SCREW - FOR IGNITION COIL FASTENING 6X20 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G06800021- More informationQuantity required : 1 |
||||||
|
3 |
20H04416771 - COUVERCLE More informationQuantity required : 1 |
||||||
|
4 |
20H04416781 - COUVERCLE More informationQuantity required : 1 |
||||||
|
4 |
86430700WB15 - R-TAPA LAT.DEPO.IZ.BL.AJ.DRD PRO 07 More informationQuantity required : 1 |
||||||
|
7 |
86158500WR15 - R-TAPA LTERAL.DR.RJO.MAL.SM 80 More informationQuantity required : 1 |
||||||
|
7 |
20H00510071 - COUVERCLE LATERAL D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/0/5/img/187805.JPG)
8 |
20H00510081 - COUVERCLE LATERAL G More informationQuantity required : 1 |
||||||
|
8 |
00H005100835 - R-TAPA LTRAL.IZ.AZL.AÐL.DRD 50CC More informationQuantity required : 1 |
||||||
|
8 |
86158600WR15 - R-TAPA LTERAL.IZ.RJO.MAL.SM 80 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/7/img/64537.jpg)
9 |
00H01501701 - BOULON BOMBEE ALLEN 6M100X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/0/8/img/187808.JPG)
10 |
00H01527231 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/0/9/img/187809.JPG)
11 |
00H06801321 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/0/img/71410.jpg)
12 |
FRONT DUST COVER RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8120622- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/4/img/69844.jpg)
13 |
WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/4/4/img/64544.jpg)
14 |
00H01503701 - VIS M6X25 More informationQuantity required : 1 |
||||||
|
15 |
86158400WG05 - R-COLIN SILLIN AMAR.MAL.SM 80 More informationQuantity required : 1 |
||||||
|
15 |
86158400WB15 - R-COLIN BLN.AJD.SM DRD PRO 50 08 More informationQuantity required : 1 |
||||||
|
15 |
20H00617161 - QUEUE More informationQuantity required : 1 |
||||||
|
16 |
SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
17 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/3/img/63683.jpg)
18 |
00011051801 - VIS TARAUD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
19 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/1/3/img/187813.JPG)
20 |
00H03808301 - RADIATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/7/img/63687.jpg)
21 |
SCREW - FOR RADIATOR GRILLE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00011141300- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
22 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/1/4/img/187814.JPG)
23 |
00H00719341 - SUPL. GARDE BOUE AR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/3/img/63923.jpg)
24 |
SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041- More informationQuantity required : 1 |
||||||
|
25 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/5/img/72325.jpg)
26 |
REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -AP8224164- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/8/img/63588.JPG)
28 |
00000023040 - ECROU INDESSERABLE4M70 More informationQuantity required : 1 |
||||||
|
29 |
00H00709121 - GARDE-BOUE More informationQuantity required : 1 |
||||||
|
30 |
SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/6/8/img/64668.jpg)
31 |
FRONT BRAKE CABLE FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00H02201591- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
32 |
RUBBER SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00D01500021- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/1/6/img/187816.JPG)
33 |
00H02204461 - SUPPORT COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/1/7/img/187817.JPG)
34 |
00H05905521 - SUPPORT COUVERCLE More informationQuantity required : 1 |
||||||
|
35 |
00H01503701 - VIS M6X25 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/1/8/img/187818.JPG)
36 |
00H05175651 - R-JUEGO CALCAS SM PRO NEG.OMBU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/1/9/img/187819.JPG)
36 |
861614 - R-JUEGO CALCAS SD.SM DRD PRO More informationQuantity required : 1 |
||||||
|
36 |
86389000WN0 - R-CTO.KIT CALCAS SM DRD PRO MALOSSI 07 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/2/1/img/187821.JPG)
36 |
865331 - R-CTO.KIT CALCAS SM DRD PRO BLN.AJD.08 More informationQuantity required : 1 |
