Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM DRD PRO 2005-2008 E2 2ver
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

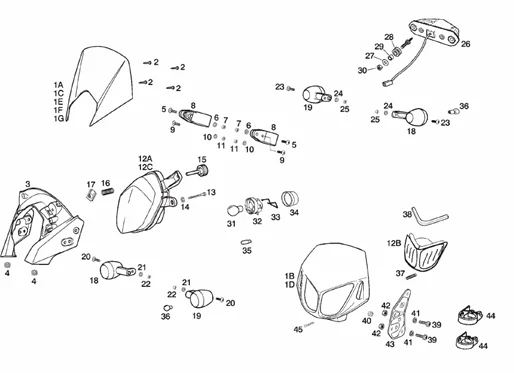

Châssis - parties plastiques - carrosseries : 7 PHARE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1029/SENDA_SM_DRD_PRO_2005-2008_E2_2ver_7.png)
1 |
00H015152815 - R-CARCASA FARO SD DRD REST More informationQuantity required : 1 |
||||||
|
1 |
20H01515281 - COUVERCLE More informationQuantity required : 1 |
||||||
|
1 |
00H015202815 - R-CARCASA FARO BLNC.AJE.DRD 50CC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/4/8/img/187848.jpg)
1 |
20H01520281 - PHARE MASQUE More informationQuantity required : 1 |
||||||
|
1 |
00H015202835 - R-CARCASA FARO AZL.AÐL.DRD 50CC More informationQuantity required : 1 |
||||||
|
1 |
86387000WR15 - R-CARCASA FARO ROJ.DRD PRO MALOSSI More informationQuantity required : 1 |
||||||
|
2 |
00011021300 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/5/1/img/187851.JPG)
3 |
00H05801181 - PLAQUE PHARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/1/img/63871.jpg)
4 |
SILENTBLOC ON REAR SIDE PANEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00D01010821- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
6 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
7 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/5/2/img/187852.JPG)
8 |
00H04621841 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
10 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/1/1/img/70111.jpg)
12 |
HEADLAMP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -865385- More informationQuantity required : 1 |
||||||
|
12 |
00H01029011 - OPTIQUE COMPLETE More informationQuantity required : 1 |
||||||
|
12 |
00H01013011 - OPTIQUE COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/8/img/63678.jpg)
13 |
SCREW - (3,6X25) FOR HEADLIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00011032501- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/7/8/img/64378.jpg)
15 |
SCREW - FOR HEADLIGHT ADJUSTING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00H0100310 - More informationQuantity required : 1 |
||||||
|
16 |
00G02301501 - RESSORT PHARE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
17 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/8/6/img/69986.jpg)
18 |
FLASHER- FRONT RIGHT/REAR LEFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -863008- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/9/7/img/64597.JPG)
18 |
00H01704311 - CLIGNOTANTS AR. GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/9/8/img/64598.jpg)
19 |
00H01706021 - GLIGNOTEURS AR. DROITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/8/7/img/69987.jpg)
19 |
FLASHER- FRONT LEFT/REAR RIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -863009- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/4/img/63664.jpg)
20 |
00008061500 - VIS A TETE RONDE 6M100X16 More informationQuantity required : 1 |
||||||
|
20 |
00008063000 - VIS More informationQuantity required : 1 |
||||||
|
21 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/6/img/63726.JPG)
21 |
00031106000 - RONDELLE PLATE D6 More informationQuantity required : 1 |
||||||
|
22 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
|
23 |
00008061500 - VIS A TETE RONDE 6M100X16 More informationQuantity required : 1 |
||||||
|
24 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
|
25 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/6/img/64386.jpg)
26 |
TAILLIGHT- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H01009321- More informationQuantity required : 1 |
||||||
|
27 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/3/img/63673.jpg)
28 |
SILENT-BLOC FOR RADIATOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2018/APRILIA 50 RS 2006>2018, SX, RX 2006>2018 - 00008915020- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/2/img/63882.jpg)
29 |
SPACER-RING NUT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00D01500471- More informationQuantity required : 1 |
||||||
|
30 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
31 |
LIGHT BULB FOR HEADLAMP 12V-35/35W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -219528- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/1/img/63641.jpg)
32 |
BULB HOLDER - FOR HEADLAMP - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00003710110- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/2/img/63642.jpg)
33 |
SPRING FOR BULB HOLDER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00003710120- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/0/3/img/65003.jpg)
34 |
HEAD LAMP BULB PROTECTION "PIAGGIO GENUINE PART" 50 SMT, RCR/APRILIA 50 RX, SX -00H05703141- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/7/9/img/64379.jpg)
35 |
00H01003131 - TUBE PHARE More informationQuantity required : 1 |
||||||
|
36 |
AP8127489 - LAMPE RY10W 12V More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/9/1/img/64691.jpg)
37 |
HEADLIGHT ADJUSTMENT SPRING "PIAGGIO GENUINE PART" APRILIA 50 SX, RX -00H02304501- More informationQuantity required : 1 |
||||||
|
38 |
00H05700101 - BUTEE PHARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/3/img/63693.jpg)
39 |
00012051200 - VIS T.RONDE CROIX 5M80X12 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/9/9/img/64999.jpg)
40 |
00H05701061 - CAOUTCHOUC PASSE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
41 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181- More informationQuantity required : 1 |
||||||
|
42 |
00026005000 - ECROU HEXAG.A/BRIDE 5M80 D6923 More informationQuantity required : 1 |
||||||
|
43 |
00H01504741 - SOPORTE CARCASA FARO AL FR. More informationQuantity required : 1 |
||||||
|
44 |
00H04606841 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/2/img/63692.jpg)
45 |
00012045000 - VIS 4M70X50 More informationQuantity required : 1 |
