Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM 2002 RACER
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

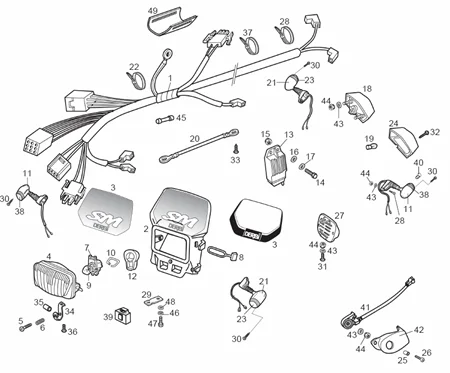

Tables : 8 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1038/SENDA_SM_2002_RACER_8.png)
1 |
00H01013301 - FAISCEAU PRINCIPAL More informationQuantity required : 1 |
||||||
|
2 |
00H02215371 - R-SCTO.CARC.FARO S.M./99 NEGRO More informationQuantity required : 1 |
||||||
|
2 |
00H02215372 - R-SCTO.CARC.FARO S.M./99 VDE. More informationQuantity required : 1 |
||||||
|
2 |
00H02215373 - R-SCTO.CARC.FARO S.M./99 AZUL More informationQuantity required : 1 |
||||||
|
2 |
00H02225371 - SCTO.CARC.FARO AZ.SD-R-RACER More informationQuantity required : 1 |
||||||
|
2 |
00H02225372 - SCTO.CARC.FARO NG.SD-R-RACER More informationQuantity required : 1 |
||||||
|
3 |
00H01522322 - CALCA PORTANUM.NGR SD-RACER More informationQuantity required : 1 |
||||||
|
3 |
00H01522321 - CALCA PORTANUM.AZ SD-RACER More informationQuantity required : 1 |
||||||
|
3 |
00H01513323 - CALCA CARCASA FARO S.M.AZUL TU More informationQuantity required : 1 |
||||||
|
3 |
00H01513322 - CALCA CARCASA FARO S.M.VDE.PR. More informationQuantity required : 1 |
||||||
|
3 |
00H01513321 - CALCA CARCASA FARO S.M.NEGRA More informationQuantity required : 1 |
||||||
|
4 |
00H01004011 - OPTIQUE COMPLETE More informationQuantity required : 1 |
||||||
|
5 |
00G01000101 - R-VIS DE REGLAGE PHARE.M4X30. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/8/7/img/64687.jpg)
6 |
HEADLIGHT ADJUSTMENT SPRING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2011> -00H02302501- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/1/img/63641.jpg)
7 |
BULB HOLDER - FOR HEADLAMP - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00003710110- More informationQuantity required : 1 |
||||||
|
8 |
00H01800361 - BRIDE FIXATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
9 |
LIGHT BULB FOR HEADLAMP 12V-35/35W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -219528- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/2/img/63642.jpg)
10 |
SPRING FOR BULB HOLDER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00003710120- More informationQuantity required : 1 |
||||||
|
11 |
00F01703391 - ENS.CLIGNOTANT ARR. GAUCHE More informationQuantity required : 1 |
||||||
|
12 |
00D05700141 - R-PROT.PORTE-LAMPES PHARE F More informationQuantity required : 1 |
||||||
|
13 |
00H01002841 - REGULATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
15 |
020105 - ECROU S02010500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
16 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/1/img/71851.JPG)
17 |
AP8150284 - RONDELLE EVENT.EXT. More informationQuantity required : 1 |
||||||
|
18 |
00H01001321 - FEU ARRIERE More informationQuantity required : 1 |
||||||
|
20 |
00A01020971 - CABLE MASSE FEU ARRIERE More informationQuantity required : 1 |
||||||
|
21 |
00F01703301 - ENS.CLIGNOTANT ARR.DROITE More informationQuantity required : 1 |
||||||
|
22 |
00A00900531 - COLLIER More informationQuantity required : 1 |
||||||
|
23 |
00G01702892 - GLACE CLIGNOTANT ARRIERE DROIT More informationQuantity required : 1 |
||||||
|
24 |
00D01070341 - VERRE More informationQuantity required : 1 |
||||||
|
25 |
00H06300281 - DOUILLE DE SERRAGE PROT.INTERR More informationQuantity required : 1 |
||||||
|
26 |
00000004612 - VIS A TETE ALLEN 6M100X12. More informationQuantity required : 1 |
||||||
|
27 |
00F01001311 - ZLAXON COMPLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
28 |
00F00900531 - COLLIER More informationQuantity required : 1 |
||||||
|
30 |
00G01701091 - BOULON SERRAGE GLACE CLIGNOTAN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
31 |
SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600- More informationQuantity required : 1 |
||||||
|
32 |
00011033800 - VIS More informationQuantity required : 1 |
||||||
|
33 |
00011061300 - VIS More informationQuantity required : 1 |
||||||
|
34 |
00H02301511 - FIX. OPTIQUE More informationQuantity required : 1 |
||||||
|
35 |
00H05700531 - R-CHAVETA FIJ.MUELLE REG.FARO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
36 |
015996 - VIS More informationQuantity required : 1 |
||||||
|
37 |
RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531- More informationQuantity required : 1 |
||||||
|
38 |
00G01702902 - GLACE CLIGNOTANT ARRIERE GAUCH More informationQuantity required : 1 |
||||||
|
39 |
00G01700401 - CENTRAL CLIGNOTANTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
40 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332- More informationQuantity required : 1 |
||||||
|
41 |
00G05700601 - ENS.INTERRUPTEUR BEQUILLE CENT More informationQuantity required : 1 |
||||||
|
42 |
00H06800301 - COUVERCLE CONTACTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
43 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
44 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
|
45 |
00F01010911 - FUSIBLE 4 AH.SCO-50.ITAL./89. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/8/4/img/64684.jpg)
49 |
PROTECTION FOR ELECTRIC BUNDLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00H02300961- More informationQuantity required : 1 |
