Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM 2002 RACER
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

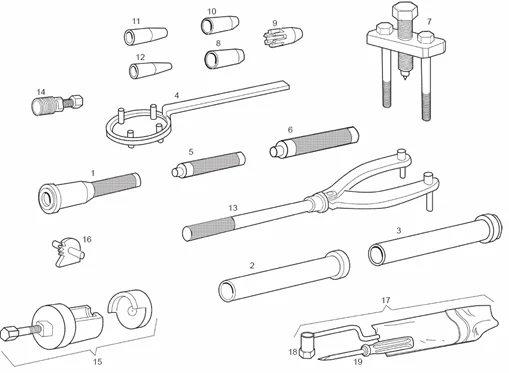

Tables : 24 ACCESSOIRES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1038/SENDA_SM_2002_RACER_24.png)
1 |
00H05400451 - OUTIL MONTAGE ANNEAU AXE VI More informationQuantity required : 1 |
||||||
|
2 |
00H05400581 - OUTIL MONTAGE ANNEAU AXE DE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/8/7/img/64987.jpg)
3 |
00H05401561 - OUTIL MONTAGE ANNEAU AXE SE More informationQuantity required : 1 |
||||||
|
4 |
00H05300041 - OUTIL FIXATION EMBRAYAGE More informationQuantity required : 1 |
||||||
|
5 |
OUTIL MONTAJE |
||||||
|
6 |
00H05600241 - OUTILLAGE MONTAGE DOUILLE A More informationQuantity required : 1 |
||||||
|
7 |
00H05300151 - ENSEMBLE OUTILLAGE OUVRIR M More informationQuantity required : 1 |
||||||
|
8 |
00H05300841 - ENSEMBLE OUTILLAGE OUVRIR M More informationQuantity required : 1 |
||||||
|
9 |
00H05600351 - PIVOT GUIDE JOINT AXE SECON More informationQuantity required : 1 |
||||||
|
10 |
00H05600341 - PIVOT GUIDE JOINT AXE DEMAR More informationQuantity required : 1 |
||||||
|
11 |
00H05600331 - PIVOT GUIDE JOINT AXE DEBRA More informationQuantity required : 1 |
||||||
|
12 |
00H05600261 - PIVOT GUIDE JOINT POMPE D,E More informationQuantity required : 1 |
||||||
|
13 |
00G05300011 - ENS.OUTIL DEMONTER VOLANT E More informationQuantity required : 1 |
||||||
|
14 |
020581Y - EXTRACTEUR More informationQuantity required : 1 |
||||||
|
15 |
00H05600321 - ESSEMBLE EXTRACTEUR PIGNON More informationQuantity required : 1 |
||||||
|
16 |
00H05600231 - ENSEMBLE AXE PIGNON CONTREP More informationQuantity required : 1 |
||||||
|
17 |
00H05101561 - TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
|
18 |
00H05101011 - CLE A BOUGIE More informationQuantity required : 1 |
||||||
|
19 |
|
