Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM 2002 RACER
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

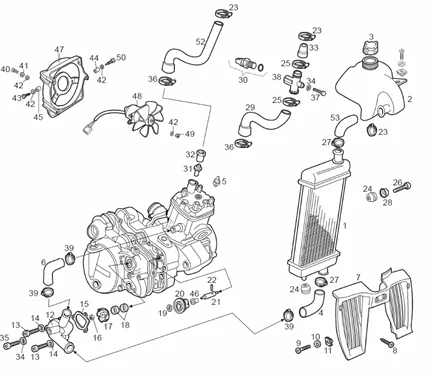

Tables : 23 INSTALLATION REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1038/SENDA_SM_2002_RACER_23.png)
1 |
00H03803012 - RADIATEUR More informationQuantity required : 1 |
||||||
|
2 |
00H03801501 - VASE D'EXPANSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/5/7/img/64857.jpg)
3 |
COOLANT TANK CAP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2000>2005 -00H03802471- More informationQuantity required : 1 |
||||||
|
4 |
00H03801032 - TUBE POMPE-RADIATEUR More informationQuantity required : 1 |
||||||
|
5 |
00H03801751 - ABRAZ.NORMA COBRA 22/8 W4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/4/4/img/64844.jpg)
6 |
COOLANT HOSE - FROM CYLINDER TO PUMP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2000>2005, GSM, H@K -00H03801041- More informationQuantity required : 1 |
||||||
|
7 |
00H03803301 - GRILLE RADIATEUR More informationQuantity required : 1 |
||||||
|
8 |
00012063000 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/4/img/63664.jpg)
9 |
00008061500 - VIS A TETE RONDE 6M100X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
10 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
12 |
00H03800134 - COUVERCLE DE POMPE D,EAU More informationQuantity required : 1 |
||||||
|
12 |
00H03800132 - COUVERCLE DE POMPE D,EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
14 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/2/img/64832.jpg)
15 |
GASKET FOR WATER PUMP COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2004 -00H03800141- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/5/img/69445.jpg)
16 |
847067 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/3/img/64833.jpg)
17 |
WATER PUMP IMPELLER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, GSM, H@K, ZULU 1998>2005 -00H03800151- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/7/3/img/64873.jpg)
18 |
WATER PUMP GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2003 (VENDU A L UNITE) -00H03810211- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/5/img/69495.jpg)
19 |
WASHER FOR CLUTCH PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847224- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/7/img/64837.jpg)
20 |
OIL PUMP PINION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, GSM, H@K, ZULU -00H03800381- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/4/img/64834.jpg)
21 |
WATER PUMP AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR E2, GSM, H@K, ZULU -00H03800161- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/4/0/img/63740.jpg)
22 |
00053030000 - GOUDILLE More informationQuantity required : 1 |
||||||
|
23 |
00H00401501 - ABRAZ.NORMA COBRA 20/8 W4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/3/img/63673.jpg)
24 |
SILENT-BLOC FOR RADIATOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2018/APRILIA 50 RS 2006>2018, SX, RX 2006>2018 - 00008915020- More informationQuantity required : 1 |
||||||
|
25 |
00H03801091 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/6/img/63696.jpg)
26 |
00012061200 - VIS A TETE RONDE A FENTES C More informationQuantity required : 1 |
||||||
|
27 |
00H03800091 - COLLIER More informationQuantity required : 1 |
||||||
|
28 |
00D01500551 - CUVETTE More informationQuantity required : 1 |
||||||
|
29 |
00H03800051 - TUBE More informationQuantity required : 1 |
||||||
|
30 |
00H03800741 - THERMOCONTACTEUR More informationQuantity required : 1 |
||||||
|
31 |
00H03800431 - THERMOSTAT More informationQuantity required : 1 |
||||||
|
32 |
00H03810421 - ECROU More informationQuantity required : 1 |
||||||
|
33 |
00H03800211 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/8/img/64838.jpg)
34 |
00H03800441 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/8/img/63568.jpg)
35 |
00000004512 - VIS A TETE CREUSE 5M80X12 NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/9/img/64839.jpg)
36 |
00H03800451 - COLLIER More informationQuantity required : 1 |
||||||
|
38 |
00H03801731 - RACCORD DE THERMOCONTACTEUR More informationQuantity required : 1 |
||||||
|
39 |
00H03801751 - ABRAZ.NORMA COBRA 22/8 W4 More informationQuantity required : 1 |
||||||
|
40 |
00000002420 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
41 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181- More informationQuantity required : 1 |
||||||
|
44 |
00H06800071 - DOVILLE More informationQuantity required : 1 |
||||||
|
45 |
00H06800061 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/6/img/64836.jpg)
46 |
BUSH FOR WTER PUMP AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR E2, GSM, HAK, ZULU -00H03800231- More informationQuantity required : 1 |
||||||
|
47 |
00H06800031 - CACHE VENTILATEUR More informationQuantity required : 1 |
||||||
|
48 |
00H05700551 - VENTILATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/8/6/img/64686.jpg)
50 |
TEMPERATURE SENSOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2004 -00H02302441- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/8/img/63588.JPG)
51 |
00000023040 - ECROU INDESSERABLE4M70 More informationQuantity required : 1 |
||||||
|
52 |
00H03801021 - TUBE CULASSE-RADIATEUR More informationQuantity required : 1 |
||||||
|
53 |
00H03801492 - TUBO REFR.DPTO.RADIAD.GRIS More informationQuantity required : 1 |
