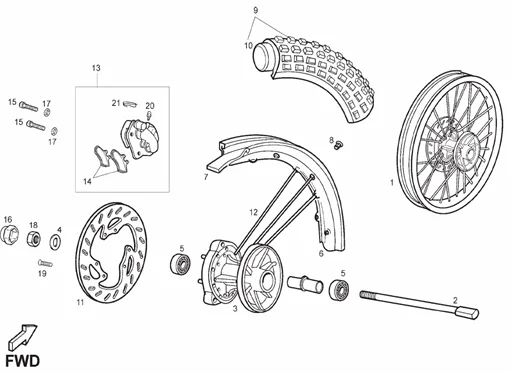

Vehicle Exploded View - DERBI SENDA R 125 Senda R 125 4T E2 2004-2007 (EMEA)

	P2R reference	189728
	Maker reference	8675710001

8675710001 - ROUE AVANT

	P2R reference	64428
	Maker reference	00H01202271

FRONT WHEEL AXLE "PIAGGIO GENUINE PART" 50 APRILIA SX, RX 2006>2013 SPOKED WHEELS -00H01202271-

	P2R reference	64434
	Maker reference	00H01204711

00H01204711 - MOYEU

	P2R reference	63730
	Maker reference	000320150005

FRONT WHEEL WASHER Ø.15 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00032015000-

	P2R reference	67481
	Maker reference	601345

REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -601345-

	P2R reference	64446
	Maker reference	00H01209082

00H01209082 - JANTE AV.

	P2R reference	63877
	Maker reference	00D01201091

00D01201091 - PROTECTEUR DE CHAMBRE A AIR

	P2R reference	63627
	Maker reference	000022120705

NUT - FOR SPOKE "PIAGGIO GENUINE PART" GILERA SMT, RCR/APRILIA 50 SX, RX -00002212070

	P2R reference	64456
	Maker reference	00H01217111

00H01217111 - PNEU AV. VEE RUBBER 3,00X21" 51 P

	P2R reference	189729
	Maker reference	00H01212101

00H01212101 - CHAMBRE A AIR

	P2R reference	187552
	Maker reference	00H01208021

00H01208021 - DISQUE FREIN AVANT

	P2R reference	64439
	Maker reference	00H01206061

FRONT WHEEL SPOKE "PIAGGIO GENUINE PART" GILERA 50 RCR/APRILIA 50 RX -00H01206061-

	P2R reference	64444
	Maker reference	00H01208191

00H01208191 - ENS. ETRIER DE FREIN

	P2R reference	189123
	Maker reference	867131

867131 - PINCE FREIN

	P2R reference	64936
	Maker reference	00H04703141

FRONT BRAKE PADS - "PIAGGIO GENUINE PART" APRILIA 50 SX, RX -00H04703141-

	P2R reference	189126
	Maker reference	867062

867062 - JEU PLAQUETTES FREINS

	P2R reference	63576
	Maker reference	000000048305

00000004830 - BOULON TETE HEX.8M125X30 D933

	P2R reference	64425
	Maker reference	00H01201331

FRONT WHEEL GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01201331

	P2R reference	63731
	Maker reference	000340008025

00034000802 - ZONDELLE EVENTAIL INT. D8

	P2R reference	64214
	Maker reference	00H00300672

NUT - FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H00300672-

	P2R reference	151759
	Maker reference	2B004560

2B004560 - VIS

	P2R reference	70045
	Maker reference	864123

SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RS -864123

	P2R reference	70305
	Maker reference	867240

SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>, 50 SX, RX 2011>, 50 SMT, RCR 2011> -867240-

	P2R reference	64467
	Maker reference	00H01301831

BRAKE PAD SPRING "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H01301831-
