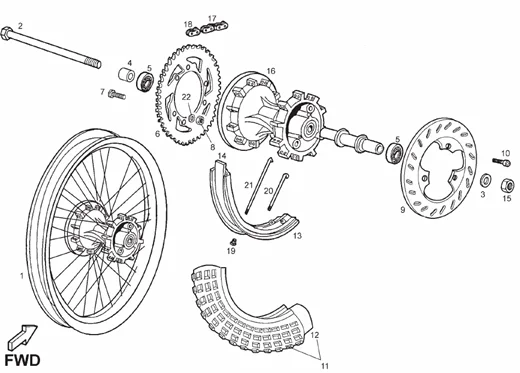

Vehicle Exploded View - DERBI SENDA R 125 Senda R 125 4T E2 2004-2007 (EMEA)

	P2R reference	189730
	Maker reference	8675730001

8675730001 - ROUE AR.

	P2R reference	189130
	Maker reference	00H01305201

00H01305201 - S/ENSEMBLE AXE ROUE ARRI$RE GP

	P2R reference	63730
	Maker reference	000320150005

FRONT WHEEL WASHER Ø.15 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00032015000-

	P2R reference	70335
	Maker reference	867494

867494 - DOUILLE

	P2R reference	67481
	Maker reference	601345

REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -601345-

	P2R reference	189951
	Maker reference	00H01328031

00H01328031 - COURONNE

	P2R reference	63701
	Maker reference	000120830015

00012083001 - BOUL.SER.DISQUE FR.ARR.FEN.95

	P2R reference	63767
	Maker reference	002620800225

00262080022 - ECROU

	P2R reference	70066
	Maker reference	864732

REAR BRAKE DISC "PIAGGIO GENUINE PART" GILERA 50 RCR 2011>/APRILIA 50 RX 2014>2018, SX 2011>2013 -864732-

	P2R reference	64696
	Maker reference	00H02401282

SCREW - FOR REAR DISC BRAKE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02401282-

	P2R reference	64517
	Maker reference	00H01316321

00H01316321 - PNEU ARR. VEE RUBBER VRM 221 4.10X18" 60

	P2R reference	189732
	Maker reference	00H01314361

00H01314361 - CHAMRE A AIR ARR.

	P2R reference	64470
	Maker reference	00H01302351

00H01302351 - JANTE ARRIERE NUE.

	P2R reference	187553
	Maker reference	00D01301401

00D01301401 - PROTECTEUR DE CHAMBRE A AIR

	P2R reference	64214
	Maker reference	00H00300672

NUT - FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H00300672-

	P2R reference	189733
	Maker reference	00H01308821

00H01308821 - MOYEU ARRIERE

	P2R reference	189952
	Maker reference	00H01516201

00H01516201 - CHAINE

	P2R reference	189135
	Maker reference	00H01502211

00H01502211 - ATTACHE RAPIDE

	P2R reference	151815
	Maker reference	00H01202071

00H01202071 - R-TUERCA RADIO M4X0.7

	P2R reference	189735
	Maker reference	00H01304691

00H01304691 - RAYON ROUE AR INT. COURT

	P2R reference	189736
	Maker reference	00H01304731

00H01304731 - RAYON ROUE ARRIERE INT.

	P2R reference	63787
	Maker reference	004020800015

ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001-
