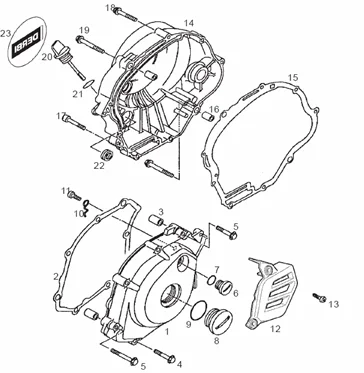

Tables : 21 COUVERCLE CARTER VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1069/Senda_R_125_4T_E2_2004-2007_(EMEA)_21.png)
1 |
00M12501125 - COUVERCLE DE CARTER More informationQuantity required : 1 |
||||||
|
2 |
00M12501252 - JOINT More informationQuantity required : 1 |
||||||
|
3 |
00M12501214 - GOUPILLE More informationQuantity required : 1 |
||||||
|
4 |
00M12501139 - VIS More informationQuantity required : 1 |
||||||
|
5 |
00M12501140 - VIS More informationQuantity required : 1 |
||||||
|
6 |
00M12501131 - BOUCHON More informationQuantity required : 1 |
||||||
|
7 |
00M12501136 - ANNEAU More informationQuantity required : 1 |
||||||
|
8 |
00M12501132 - BOUCHON More informationQuantity required : 1 |
||||||
|
9 |
00M12501138 - ANNEAU More informationQuantity required : 1 |
||||||
|
10 |
00M12501124 - RESSORT More informationQuantity required : 1 |
||||||
|
11 |
00M12501141 - VIS More informationQuantity required : 1 |
||||||
|
12 |
00H03002581 - COUVERCLE DE CHAINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
13 |
018639 - VIS More informationQuantity required : 1 |
||||||
|
14 |
00M12501126 - COUVERCLE DE CARTER More informationQuantity required : 1 |
||||||
|
15 |
00M12501058 - JOINT More informationQuantity required : 1 |
||||||
|
16 |
00M12501214 - GOUPILLE More informationQuantity required : 1 |
||||||
|
17 |
00M12501134 - VIS More informationQuantity required : 1 |
||||||
|
18 |
00M12501139 - VIS More informationQuantity required : 1 |
||||||
|
19 |
00M12501140 - VIS More informationQuantity required : 1 |
||||||
|
20 |
00M12501248 - BOUCHON More informationQuantity required : 1 |
||||||
|
21 |
00M12501137 - ANNEAU More informationQuantity required : 1 |
||||||
|
22 |
00M12501135 - BAGUE D'ÉTANCHÉITE More informationQuantity required : 1 |
||||||
|
23 |
00H04400991 - ADHESIF More informationQuantity required : 1 |
