Vehicle Exploded View - APRILIA SCARABEO 4T 50 4V Net 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

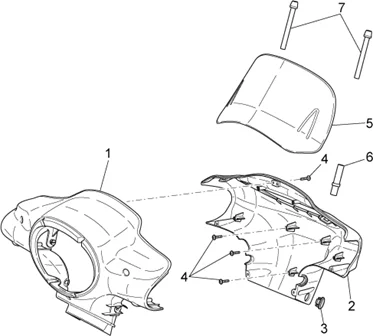

Chassis : 28.05 CARROSSERIE PARTIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/588/Scarabeo_50_4T_4V_Net_2009_28.05.PNG)
1 |
63598100XB1 - COUVERCLE AVANT More informationQuantity required : 1 |
||||||
|
2 |
85175900XB1 - COUVERCLE ARRIERE More informationQuantity required : 1 |
||||||
|
3 |
AP8268604 - BOUCHON D14 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/1/img/71971.jpg)
4 |
SCREW - BODY PARTS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO GUZZI M3X12 -AP8152334- More informationQuantity required : 9 |
||||||
|
5 |
AP8268516 - SPOILER MANUBRIO More informationQuantity required : 1 |
||||||
|
6 |
852084 - DOUILLE More informationQuantity required : 2 |
||||||
|
7 |
GU98700475 - VIS TCC M8X75 More informationQuantity required : 2 |
