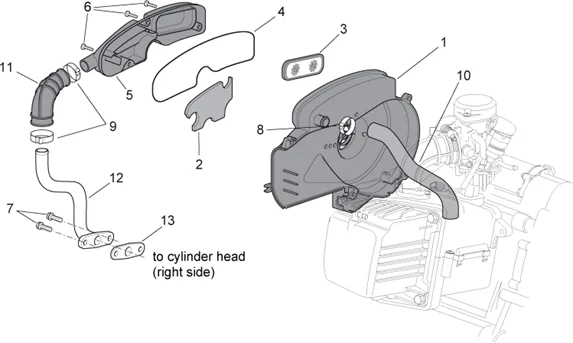

Moteur : 29.17 AIR SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/588/Scarabeo_50_4T_4V_Net_2009_29.17.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/9/2/img/69292.jpg)
1 |
EXHAUST GAZ RECIRCULATION UNIT "PIAGGIO GENUINE PART" 50 ZIP 4 STROKE, FLY 4 STROKE, LIBERTY 4 STROKE, VESPA LX 4 STROKE -843567- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/3/1/img/69031.jpg)
2 |
AIR FILTER FOAM (SECONDARY) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -832972- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/8/1/img/68681.jpg)
3 |
S.A.S. DIAPHRAGM "PIAGGIO GENUINE PART" 50 ZIP 4 STROKE, FLY 4 STROKE, LIBERTY 4 STROKE, VESPA LX 4 STROKE -82758R- More informationQuantity required : 1 |
||||||
4 |
832973 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/3/0/img/69030.jpg)
5 |
COVER S.A.S. "PIAGGIO GENUINE PART" 50 ZIP 4 STROKE, FLY 4 STROKE, LIBERTY 4 STROKE, VESPA LX 4 STROKE -843567- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/9/img/66559.jpg)
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -478533- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
7 |
B016426 - VIS TEF M6X14 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
8 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
9 |
CM001905 - COLLIER More informationQuantity required : 2 |
||||||
|
10 |
843525 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/5/img/69065.jpg)
11 |
833472 - MANCHON More informationQuantity required : 1 |
||||||
|
12 |
876483 - TUBE BOITE SAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/8/9/img/68989.jpg)
13 |
GASKET FOR GAS RECIRCULATION PIPE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 4 STROKE/MAXISCOOTER 125 -832059- More informationQuantity required : 1 |
