Vehicle Exploded View - APRILIA SCARABEO 4T 50 4V Net 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

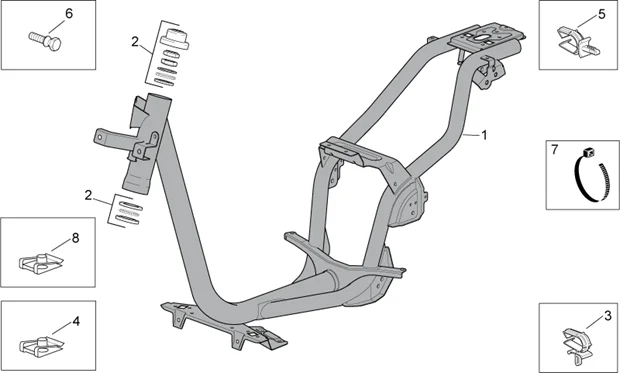

Chassis : 28.01 CADRE POLI ET LAVÉ
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/588/Scarabeo_50_4T_4V_Net_2009_28.01.PNG)
1 |
AP8235188 - CHASSIS AVEC CATAPHORESE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/1/3/7/img/57137.jpg)
2 |
COMPLETE HEADSET "PIAGGIO GENUINE PART" APRILIA 50 SCARABEO 2002>2009 -AP8223034- More informationQuantity required : 1 |
||||||
|
3 |
AP8221310 - PASSE-CABLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
4 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 8 |
||||||
|
5 |
AP8221311 - PASSE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
6 |
AP8152140 - VIS A ARRACHEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.JPG)
7 |
AP8120422 - COLLIER, NOIR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 4 |
