Vehicle Exploded View - APRILIA SCARABEO 2T 50 Mot Minarelli 1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

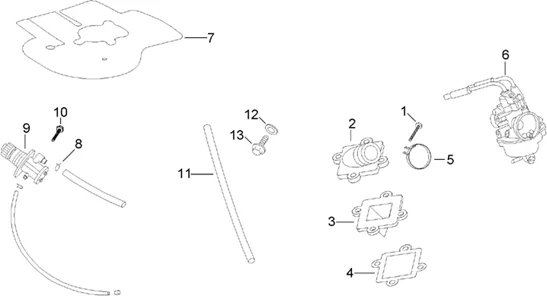

Moteur : 29.39 GROUPE CARBURATEUR - POMPE A HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/602/Scarabeo_50_2T_Mot_Minarelli_1998_29.39.PNG)
1 |
AP8502564 - VIS More informationQuantity required : 1 |
||||||
|
2 |
AP8206466 - COLLECTEUR ASPIRATION More informationQuantity required : 1 |
||||||
|
2 |
AP8206565 - COLLECTEUR ASPIRATION More informationQuantity required : 1 |
||||||
|
3 |
AP8206557 - SOUPAPE LAMELLES CPL More informationQuantity required : 1 |
||||||
|
4 |
AP8206486 - JOINT SOUPAPE LAMELLE More informationQuantity required : 1 |
||||||
|
5 |
AP8206181 - COLLIER DURITE More informationQuantity required : 1 |
||||||
|
6 |
AP8206803 - CARBURATEUR PHBN 12-GS More informationQuantity required : 1 |
||||||
|
6 |
AP8206807 - CARBURATEUR PHBN 12-GS More informationQuantity required : 1 |
||||||
|
6 |
Carburateur phbn 12-Gs |
||||||
|
7 |
AP8206473 - PROTECTION CARBURATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/9/6/5/img/55965.jpg)
8 |
AP8206711 - COLLIER More informationQuantity required : 1 |
||||||
|
9 |
AP8206119 - POMPE A HUILE COMPLETE More informationQuantity required : 1 |
||||||
|
10 |
Vis |
||||||
|
11 |
AP8206131 - RACCORD+TUBE RENIF. More informationQuantity required : 1 |
||||||
|
12 |
AP8206488 - JOINT VIS More informationQuantity required : 1 |
||||||
|
13 |
AP8206203 - VIS BRIDE More informationQuantity required : 1 |
