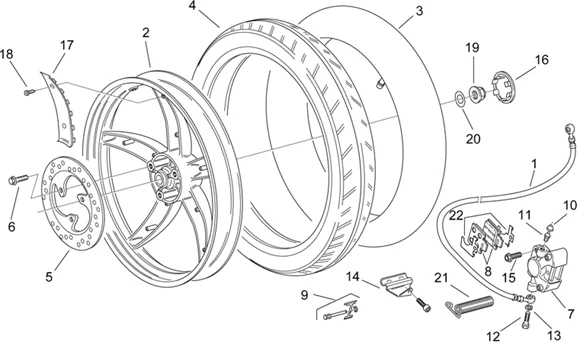

Chassis : 28.28 ROUE POSTERIEURE - F.D.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/602/Scarabeo_50_2T_Mot_Minarelli_1998_28.28.PNG)
1 |
TUBE FREIN ARR=8213308 |
||||||
|
2 |
AP8208463 - ROUE ARRIERE NUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/0/3/img/56403.jpg)
5 |
AP8213231 - DISQUE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
6 |
SCREW - (8X30) MULTI PURPOSE "PIAGGIO GENUINE PART" -AP8152288 More informationQuantity required : 3 |
||||||
|
7 |
AP8213309 - PINCE FREIN AR NOIR More informationQuantity required : 1 |
||||||
|
8 |
AP8113663 - PLAQUETTES ARRIERE (LA PAIRE) More informationQuantity required : 1 |
||||||
|
9 |
AP8213227 - GOUJON+RESSORT PINCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
10 |
AP8113005 - CAPUCHON RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/5/img/71285.jpg)
11 |
SCREW - DRAIN SCREW "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER/MAXISCOOTER APRILIA -AP8113006- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
12 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
13 |
AP8113004 - RONDELLE More informationQuantity required : 4 |
||||||
|
14 |
AP8238852 - PLAQUE SUPPORT TUYAU FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
15 |
AP8152287 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
16 |
AP8220367 - BOUCHON ROUE ARRIERE More informationQuantity required : 1 |
||||||
|
17 |
AP8239738 - CACHE RAY. ROUE AR More informationQuantity required : 5 |
||||||
|
17 |
AP8258342 - CACHE RAY. ROUE AR More informationQuantity required : 5 |
||||||
|
18 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/4/img/97094.jpg)
19 |
AP8152244 - ECROU DAX BRID. More informationQuantity required : 1 |
||||||
|
20 |
AP8150471 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
21 |
AP8221209 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
22 |
Platine antisiff. AV-couple |
