Vehicle Exploded View - APRILIA SCARABEO 2T 50 Mot Minarelli 1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

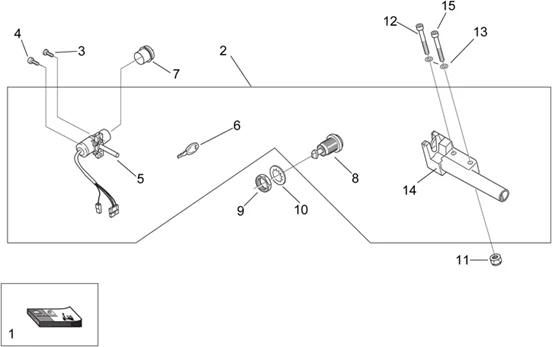

Chassis : 28.33 MANUEL INSTR.- KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/602/Scarabeo_50_2T_Mot_Minarelli_1998_28.33.PNG)
1 |
Manuel instructions |
||||||
|
1 |
Manuel instructions |
||||||
|
1 |
Manuel instructions |
||||||
|
2 |
AP8201846 - KIT SERRURE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
3 |
AP8152140 - VIS A ARRACHEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
4 |
SCREW - (6X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8150137 More informationQuantity required : 1 |
||||||
|
5 |
AP8201793 - BLOC DEMARREUR-BLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
6 |
AP8104613 - "CLE ""APRILIA"" SANS TRANSPO." More informationQuantity required : 1 |
||||||
|
7 |
AP8220386 - JOINT BLOC DEMARR. More informationQuantity required : 1 |
||||||
|
8 |
AP8104600 - SERRURE PORTE-OBJETS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
9 |
AP8152194 - ECROU BAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.jpg)
10 |
AP8221312 - RONDELLE EVENT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
11 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/3/8/img/50938.jpg)
12 |
AP8152003 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
13 |
AP8150014 - RONDELLE More informationQuantity required : 2 |
||||||
|
14 |
AP8201564 - SERRURE SELLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/8/img/71838.jpg)
15 |
AP8150202 - VIS More informationQuantity required : 1 |
