Vehicle Exploded View - APRILIA SCARABEO 2T 50 E2 Net 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

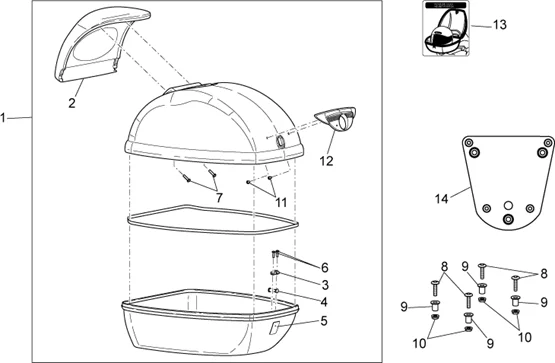

Chassis : 28.15 COFFRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/595/Scarabeo_50_2T_E2_Net_2009_28.15.PNG)
1 |
AP8269325 - COFFRE, BLANC V. More informationQuantity required : 1 |
||||||
|
2 |
AP8269326 - DOSSIER More informationQuantity required : 1 |
||||||
|
3 |
AP8221335 - CAVAL SERRUR COFFRET More informationQuantity required : 1 |
||||||
|
4 |
AP8221334 - AXE SERRURE More informationQuantity required : 1 |
||||||
|
5 |
854964 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
6 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
7 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/6/img/71916.JPG)
8 |
AP8152136 - VIS More informationQuantity required : 4 |
||||||
|
9 |
AP8121790 - "DOUILLE EN ""T""" More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/8/img/71878.jpg)
11 |
AP8150420 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 2 |
||||||
|
12 |
851949 - TARGHETTA 'APRILIA' More informationQuantity required : 1 |
||||||
|
14 |
672409 - PLAQUE More informationQuantity required : 1 |
