Vehicle Exploded View - APRILIA SCARABEO 2T 50 E2 Net 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

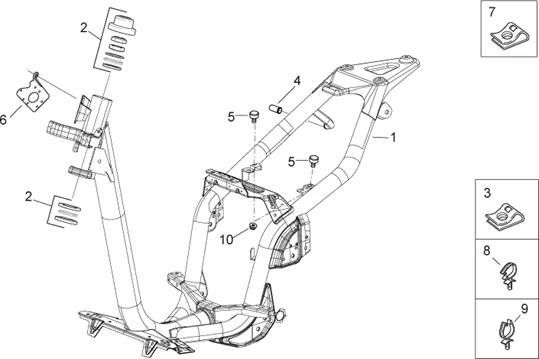

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/595/Scarabeo_50_2T_E2_Net_2009_28.01.PNG)
1 |
8530335 - CHASSIS More informationQuantity required : 1 |
||||||
|
2 |
AP8203666 - SERIE DIRECTION COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
3 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/4/img/72284.jpg)
4 |
AP8220460 - RONDELLE EN CAOUTCHOUC; More informationQuantity required : 1 |
||||||
|
5 |
AP8706329 - GOMMINO D=20 H=10 M6X20 More informationQuantity required : 2 |
||||||
|
6 |
AP8234138 - SUPPORT PLAQUETTE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
7 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
|
8 |
AP8221310 - PASSE-CABLE More informationQuantity required : 1 |
||||||
|
9 |
AP8221311 - PASSE-CABLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
