Vehicle Exploded View - APRILIA SCARABEO 2T 50 E2 Net 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

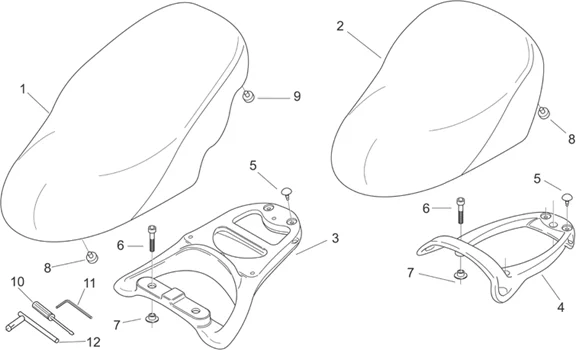

Chassis : 28.14 SELLE-PORTE BAG
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/595/Scarabeo_50_2T_E2_Net_2009_28.14.PNG)
1 |
AP8229454 - SELLE LONGUE GRISE More informationQuantity required : 1 |
||||||
|
2 |
AP8229453 - SELLE MONOPLACE More informationQuantity required : 1 |
||||||
|
3 |
AP8258738 - PORTE-BAG.SILVER LONG; More informationQuantity required : 1 |
||||||
|
4 |
AP8179647 - PORTAPACCHI V.SILVER MIRROR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
5 |
AP8120001 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/6/img/71946.jpg)
6 |
SCREW - FLANGE -AP8152284- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
7 |
AP8121728 - "DOUILLE EN ""T""" More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/1/img/72281.jpg)
8 |
AP8220349 - CAOUTCHOUC APPUI SELLE More informationQuantity required : 5 |
||||||
|
9 |
AP8220517 - CAOUTCHOUC APPUI SELLE More informationQuantity required : 6 |
||||||
|
10 |
AP8201884 - SCREWDRIVER; More informationQuantity required : 1 |
||||||
|
11 |
AP8202286 - CLE More informationQuantity required : 1 |
||||||
|
12 |
852417 - CLEF TUBE CH21 More informationQuantity required : 1 |
