Vehicle Exploded View - APRILIA SCARABEO 2T 50 E2 Mot Piaggio 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

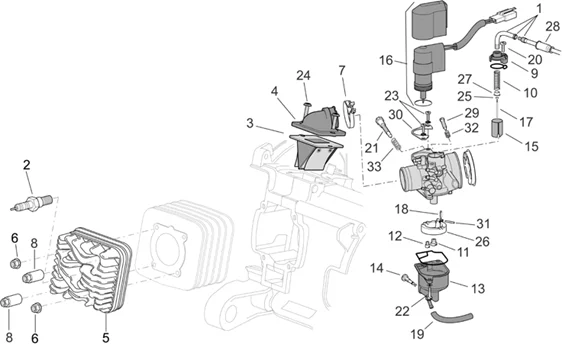

Moteur : 29.36 CULASSE/CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/597/Scarabeo_50_2T_E2_Mot_Piaggio_2006-2009_29.36.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/9/9/img/65699.jpg)
1 |
ANGLED GUIDING TUE FOR CARB "PIAGGIO GENUINE PART"COMMON FOR ALL SCOOTER 50 CC -113903- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/9/7/img/69897.jpg)
2 |
SPARK PLUG BR8ES "PIAGGIO GENUINE PART" APRILIA 50-125 RS/MOTO- GUZZI 750 BREVA, NEVADA -861612- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/1/img/68691.jpg)
3 |
REED VALVE "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC 2 STROKE (FRAME N° MANDATORY) -82774R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/4/6/img/152746.jpg)
4 |
INTAKE MANIFOLD "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/VESPA 50 LX/GILERA 50 RUNNER, STALKER/APRILIA 50 SPORT-CITY, SR -1A008824- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/7/4/img/66174.jpg)
5 |
CYLINDER HEAD- "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS 50 CC 2 STROKE -2865344- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
6 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/2/4/img/149124.jpg)
7 |
1A006280 - COLLIER More informationQuantity required : 1 |
||||||
|
7 |
1A006280 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/4/img/66194.jpg)
8 |
NUT - FOR CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50 CC 2 STROKE -288531- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/5/img/66415.jpg)
9 |
431654 - COUVERCLE CARBURATEUR QUARTZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/6/img/66626.jpg)
10 |
SPRING FOR CARB SLIDE "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/ GILERA 50 RCR, SMT, STALKER, RUNNER -479882 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/4/5/img/73045.jpg)
11 |
MAIN JET Ø 53 MAXIMUM "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -CM101704- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/6/7/img/73067.jpg)
12 |
IDLE JET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -CM102103- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/4/img/66664.jpg)
13 |
CARB FLOAT CHAMBER "PIAGGIO GENUINE PART" 50 ZIP, NRG, LIBERTY, FLY, VESPA LX/GILERA 50 RUNNER, STALKER/APRILIA 50 RS, SR -484704- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/2/3/img/66423.jpg)
14 |
SCREW - FOR CARB BOWL "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 -432456- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/8/1/img/73181.jpg)
15 |
CARB THROTTLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -CM141710- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/8/7/img/73087.jpg)
16 |
CHOKE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, ZIP, VESPA LX, PRIMAVERA/APRILIA 50 SR/GILERA 50 STALKER, RUNNER, DNA -CM105905- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/0/0/img/73100.jpg)
17 |
NEEDLE FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50CC 2STROKE -CM107510- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/4/6/img/73146.jpg)
18 |
CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -CM128501- More informationQuantity required : 1 |
||||||
19 |
CM112001 - TUBE VIDANGE CUVETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/2/img/66202.jpg)
20 |
288865 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/2/5/img/68725.jpg)
21 |
SCREW - FOR INJECTION BODY ADJUSTING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -828074- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/0/img/66200.JPG)
22 |
288862 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/8/img/66228.jpg)
23 |
289575 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.JPG)
24 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 2 |
||||||
|
24 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/4/img/66204.jpg)
25 |
NEEDLE CIRCLIP FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC -288872- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/5/img/66625.jpg)
26 |
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -482916- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/5/img/66205.jpg)
27 |
CONICAL PIN CLIP "PIAGGIO GENUINE PART" COMMON TO THE SCOOTER 50 CC RANGE -288873- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/8/7/img/70587.JPG)
28 |
875551 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/0/2/img/73102.jpg)
29 |
SCREW - CARB AIR SCREW "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -CM107701- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/1/img/66201.jpg)
30 |
CHOKE PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -288863- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/9/img/66209.jpg)
31 |
288881 - AXE FLOTTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/0/img/65670.jpg)
32 |
085285 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
33 |
152608 - VIS More informationQuantity required : 1 |
