Vehicle Exploded View - APRILIA SCARABEO 2T 50 E2 Mot Piaggio 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

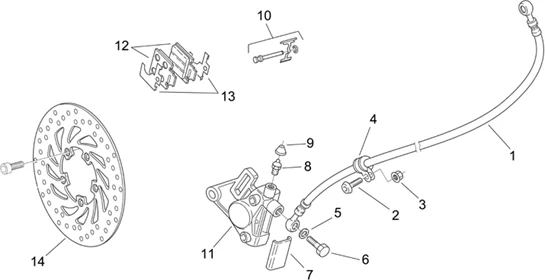

Chassis : 28.26 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/597/Scarabeo_50_2T_E2_Mot_Piaggio_2006-2009_28.26.PNG)
1 |
AP8213355 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 1 |
||||||
|
3 |
AP8150333 - ECROU SERPRESS More informationQuantity required : 1 |
||||||
|
4 |
AP8134167 - PLAQUETTE TUYAU FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
5 |
AP8113004 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
6 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 2 |
||||||
|
7 |
AP8213224 - COUVERCLE PINCE FREIN More informationQuantity required : 1 |
||||||
|
7 |
AP8213592 - COPERCHIO PINZA FRENO More informationQuantity required : 1 |
||||||
|
8 |
AP8213589 - SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/9/img/72199.jpg)
8 |
SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER ET MAXISCOOTER APRILIA -AP8213108- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
9 |
AP8113005 - CAPUCHON RENIFLARD More informationQuantity required : 1 |
||||||
|
9 |
AP8213575 - CAPPUCCIO SPURGO ARIA More informationQuantity required : 1 |
||||||
|
10 |
AP8213227 - GOUJON+RESSORT PINCE More informationQuantity required : 1 |
||||||
|
10 |
AP8213591 - PERNO+MOLLA PINZA More informationQuantity required : 1 |
||||||
|
11 |
AP8213608 - PINZA FRENO ANT.D.30 More informationQuantity required : 1 |
||||||
|
11 |
AP8213371 - PINCE FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/1/5/img/71315.jpg)
12 |
AP8113644 - PLAQUETTES-PAIRE More informationQuantity required : 1 |
||||||
|
12 |
AP8213223 - PLAQUETTES-PAIRE More informationQuantity required : 1 |
||||||
|
14 |
AP8213381 - DISQUE FREIN AVANT More informationQuantity required : 1 |
