Vehicle Exploded View - APRILIA SCARABEO 2T 50 E2 Mot Piaggio 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

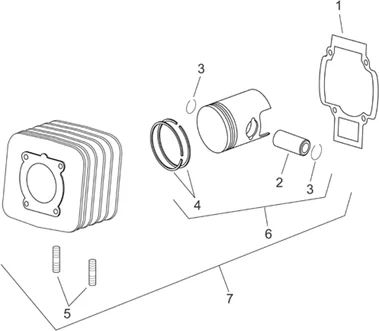

Moteur : 29.34 CYLINDRE AV.PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/597/Scarabeo_50_2T_E2_Mot_Piaggio_2006-2009_29.34.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/7/6/img/66176.jpg)
1 |
CYLINDER BASE GASKET "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, FLY, LIBERTY, VESPA LX/GILERA 50 STALKER/APRILIA 50 SR -286810- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/2/img/65982.jpg)
2 |
PISTON PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50CC --239404- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/3/img/65983.jpg)
3 |
STOP RING FOR PISTON "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC 2 STROKE -239455- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/1/img/68541.jpg)
4 |
PISTON RING- "PIAGGIO GENUINE PART" 50 TYPHOON 1995>, NRG 1998>, ZIP 2000>, VESPA LX 2005>, LIBERTY 1998>,FLY 2 STROKE 2005>/APRILIA 50 SR 2010>/GILERA 50 STALKER 1997>, RUNNER 1997> (VENDU A L UNITE) -825416- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/1/img/65981.jpg)
5 |
EXHAUST STUD BOLT M6 "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -239397- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/5/6/img/66756.jpg)
6 |
PISTON "PIAGGIO GENUINE PART" 50 ZIP 1995>, TYPHOON 1995>, NRG 1997>, LIBERTY 2000>, FLY 2005>, VESPA LX 2005>/GILERA 50 RUNNER 1997>, STALKER 1997>/APRILIA 50 SR 2003> CAT-4(P) -4878020004- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/5/5/img/66755.jpg)
6 |
PISTON "PIAGGIO GENUINE PART" 50 ZIP 1996>, TYPHOON 1996>, FLY 2 STROKE 2005>, LIBERTY 2 STROKE 1998>, NRG 1998>, VESPA LX 2 STROKE, VESPA-S 2 STROKE 2007>/GILERA 50 RUNNER, STALKER/APRILIA 50 SR 2012> CAT-3(O) -4878020003- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/5/4/img/66754.jpg)
6 |
PISTON "PIAGGIO GENUINE PART" 50 ZIP 1995>, TYPHOON 1995>, NRG 1997>, LIBERTY 2000>, FLY 2005>, VESPA LX 2005>/GILERA 50 RUNNER 1997>, STALKER 1997>/APRILIA 50 SR 2003> CAT-2(N) -4878020002- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/5/3/img/66753.jpg)
6 |
PISTON "PIAGGIO GENUINE PART" 50 ZIP 1996>, TYPHOON 1996>, FLY 2 STROKE 2005>, LIBERTY 2 STROKE 1998>, NRG 1998>, VESPA LX 2 STROKE, VESPA-S 2 STROKE 2007>/GILERA 50 RUNNER, STALKER/APRILIA 50 SR 2012> CAT-1(M) -4878020001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/4/6/img/68946.jpg)
7 |
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, TYPHOON, VESPA LX/GILERA 50 STALKER/APRILIA 50 SR (LIVRE SANS JOINT) -831116- More informationQuantity required : 1 |
