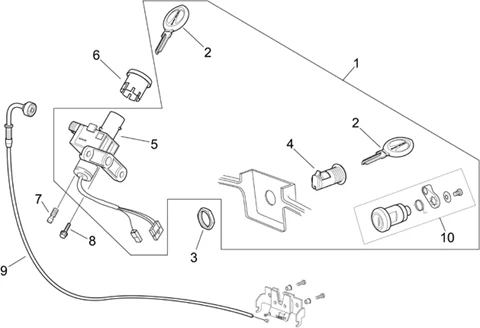

Chassis : 28.45 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/612/Scarabeo_125_E3_Mot_Piaggio_2006_28.45.PNG)
1 |
CONTACTEUR A CLEF |
||||||
|
2 |
AP8104598 - "CLE ""SCARABEO"" SANS TRANSPO." More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/4/img/71184.jpg)
3 |
AP8102523 - ECROU SERRURE More informationQuantity required : 1 |
||||||
|
4 |
AP8104584 - SERRURE COFFRE More informationQuantity required : 1 |
||||||
|
5 |
AP8124620 - BLOC DEMARREUR-BLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/6/5/img/45265.jpg)
6 |
AP8102944 - CAPUCH. COMMUTATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
7 |
AP8152140 - VIS A ARRACHEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
8 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 1 |
||||||
|
9 |
AP8114381 - CABLE SERRURE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/6/8/img/45468.jpg)
10 |
SADDLE LOCK "PIAGGIO GENUINE PART" APRILIA 125-250 SCARABEO -AP8104825- More informationQuantity required : 1 |
