Vehicle Exploded View - APRILIA SCARABEO 125 E3 Mot Piaggio 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

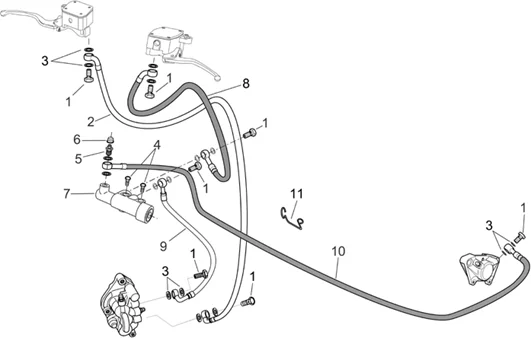

Chassis : 28.26 SYS.FREIN AVANT/ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/612/Scarabeo_125_E3_Mot_Piaggio_2006_28.26.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
1 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 7 |
||||||
2 |
AP8133722 - TUBO FRENO ANTERIORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
3 |
AP8113004 - RONDELLE More informationQuantity required : 16 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
4 |
AP8152282 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
5 |
AP8113761 - PURGE AIR; More informationQuantity required : 1 |
||||||
|
6 |
AP8113230 - CAPUCHON RENIFLARD (20 PCS) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/8/7/img/48787.jpg)
7 |
BRAKE VALVE "PIAGGIO GENUINE PART" APRILIA 125-250-400-500 ATLANTIC, SCARABEO (GRIMECA) -AP8133738 More informationQuantity required : 1 |
||||||
|
8 |
AP8133720 - TUBO POMPA/RITARDATORE More informationQuantity required : 1 |
||||||
|
9 |
AP8133718 - TUBO RITARDATORE PINZA ANT. More informationQuantity required : 1 |
||||||
|
10 |
AP8133719 - TUBO RITARDATORE PINZA POST. More informationQuantity required : 1 |
||||||
|
11 |
AP8121889 - GUIDE-CABLE More informationQuantity required : 1 |
