Vehicle Exploded View - APRILIA RX 125 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

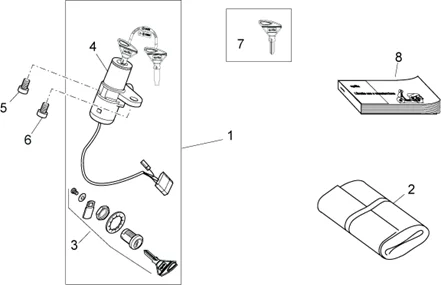

Chassis : 28.31 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/688/RX_125_2008-2010_28.31.PNG)
1 |
861013 - ENS.SERRURE COMMUTATEUR More informationQuantity required : 1 |
||||||
|
2 |
AP8102950 - TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
|
3 |
852164 - SERRURE COFFRE More informationQuantity required : 1 |
||||||
|
4 |
852163 - BLOCCASTERZO CON CHIAVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
5 |
SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/6/img/71866.jpg)
6 |
AP8150349 - VIS A ARRACHEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/5/img/97075.jpg)
7 |
KEYBLANK "PIAGGIO GENUINE PART" APRILIA 50-125 RS, SX, RX -AP8140710 More informationQuantity required : 1 |
||||||
|
8 |
|
