Vehicle Exploded View - APRILIA RX 125 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

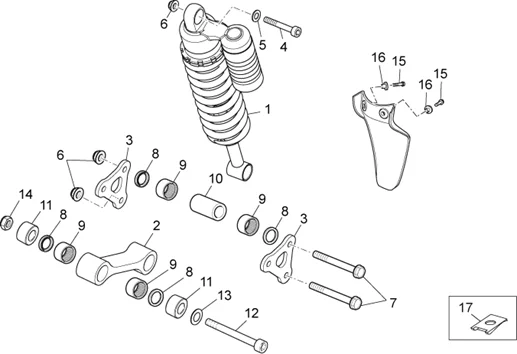

Chassis : 28.08 SUSPENSION ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/688/RX_125_2008-2010_28.08.PNG)
1 |
856715 - AMORTISSEUR More informationQuantity required : 1 |
||||||
|
2 |
860271 - BIELLE SIMPLE More informationQuantity required : 1 |
||||||
|
3 |
856716 - DOUBLE BIELLETTE More informationQuantity required : 2 |
||||||
|
4 |
AP8152217 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
5 |
AP8150020 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
6 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/0/6/img/51006.jpg)
7 |
AP8152413 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/0/img/71270.jpg)
8 |
AP8110068 - JOINT SPI More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/3/img/45823.jpg)
9 |
ROLLER BEARING FOR SUSPENSION ARM "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4, TUONO, FUTURA, 125 RX, SX -AP8110065 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/0/3/0/img/50030.jpg)
10 |
AP8146518 - SPINOTTO L=36 More informationQuantity required : 1 |
||||||
|
11 |
860280 - ENTRETOISE BIELLE SIMPLE More informationQuantity required : 2 |
||||||
|
12 |
AP8150344 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/9/img/71909.jpg)
13 |
AP8152018 - RONDELLE FER PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/4/img/71884.jpg)
14 |
AP8150432 - ECROU AUTOFR. BAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
15 |
AP8152279 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
16 |
AP8121032 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
17 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 4 |
