Vehicle Exploded View - APRILIA RX 125 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

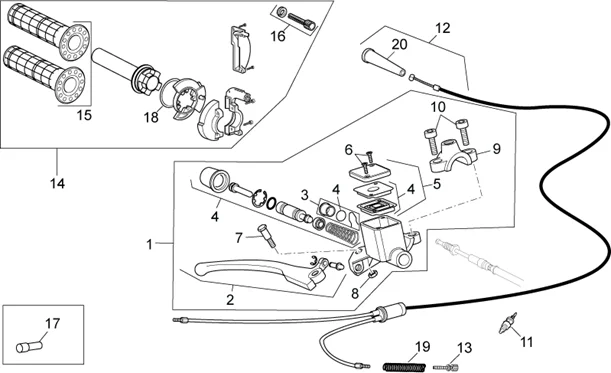

Chassis : 28.22 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/688/RX_125_2008-2010_28.22.PNG)
1 |
860314 - MA?T. CYL. FREIN AV More informationQuantity required : 1 |
||||||
|
1 |
893246 - MA?T. CYL. FREIN AV More informationQuantity required : 1 |
||||||
|
2 |
890308 - LEVIER More informationQuantity required : 1 |
||||||
|
2 |
894039 - LEVIER More informationQuantity required : 1 |
||||||
|
3 |
Hublot pompe frein |
||||||
|
3 |
AP8213455 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
|
4 |
894041 - KIT REVISION POMPE More informationQuantity required : 1 |
||||||
|
4 |
AP8213600 - KIT REVISIONE POMPA More informationQuantity required : 1 |
||||||
|
5 |
894042 - KIT COUVERCLE RESERVOIR More informationQuantity required : 1 |
||||||
|
5 |
AP8213598 - COPERCHIO SERBATOIO More informationQuantity required : 1 |
||||||
|
6 |
AP8213583 - VITE COPERCHIO POMPA More informationQuantity required : 2 |
||||||
|
7 |
AP8213584 - VITE FISSAGGIO LEVA More informationQuantity required : 1 |
||||||
|
8 |
AP8213585 - DADO More informationQuantity required : 1 |
||||||
|
9 |
890309 - ETRIER GUIDON More informationQuantity required : 1 |
||||||
|
9 |
894043 - ETRIER GUIDON More informationQuantity required : 1 |
||||||
|
10 |
AP8213582 - VITE CAPPELLOTTO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
11 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-500 MP3, X10, X-EVO, BEVERLY, GAMME VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO -642032 More informationQuantity required : 1 |
||||||
|
12 |
860713 - TRANSM. COMMANDE GAZ More informationQuantity required : 1 |
||||||
|
13 |
AP8114272 - REGLAGE CABLE ACCELERAT. More informationQuantity required : 1 |
||||||
|
14 |
AP8118672 - COMANDO GAS COMPL.DI MANOPOLA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/6/4/img/72264.jpg)
15 |
HAND GRIP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX (PAIR) -AP8218628 More informationQuantity required : 1 |
||||||
|
16 |
AP8114371 - REGLAGE CABLE ACCELERATEUR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/0/img/72270.jpg)
17 |
AP8220135 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
18 |
AP8221356 - DISTANZIALE More informationQuantity required : 1 |
||||||
|
19 |
AP8121318 - MOLLA PROTEZIONE CAVO More informationQuantity required : 1 |
||||||
|
20 |
AP8220143 - CAPUCHON REGLAGE GAS More informationQuantity required : 1 |
