Vehicle Exploded View - GILERA RUNNER 50 SP 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

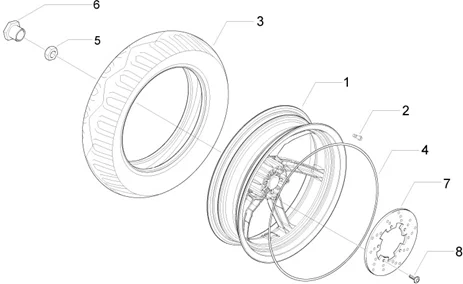

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/162/Runner_50_SP_2010-2012_04.12.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/9/9/6/img/89996.jpg)
1 |
REAR WHEEL "PIAGGIO GENUINE PART" 50 NRG 2007>/GILERA 50 RUNNER 2010> -6661790090- More informationQuantity required : 1 |
||||||
1 |
666179000G - ROUE ARR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
2 |
270991 - VALVE More informationQuantity required : 1 |
||||||
|
3 |
949621 - PNEU 140/60-13 SAVA More informationQuantity required : 1 |
||||||
|
4 |
64773600RL - BANDE DECORATION More informationQuantity required : 1 |
||||||
|
4 |
64773600L1 - BANDE DECORATION RUNNER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/3/img/146193.jpg)
5 |
NUT - FOR REAR/FRONT WHEEL AXLE "PIAGGIO GENUINE PART" 125-350-500 X10/APRILIA 50 SCARABEO, SR H2O -1C002565- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/1/5/img/67015.jpg)
6 |
562129 - BOUCHON ROUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/1/img/67041.jpg)
7 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" 50 NRG, ZIP/GILERA 50 STALKER, RUNNER (5 HOLES) -56396R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/5/img/66135.jpg)
8 |
274369 - BOULON More informationQuantity required : 5 |
