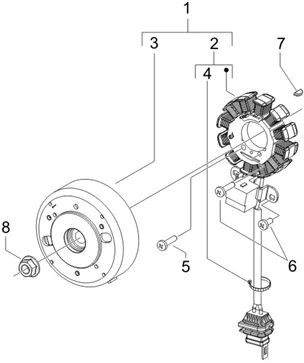

Vehicle Exploded View - GILERA RUNNER 50 SP 2010-2012 GILERA

Moteur : 01.21 VOLANT MAGNETIQUE
Volant magnetique
Search
IGNITION "PIAGGIO GENUINE PART" 50 FLY 2 Stroke, LIBERTY 2 Stroke, NRG, TYPHOON, ZIP 2 Stroke, VESPA LX 2 Stroke, PRIMAVERA 2 Stroke, SPRINT 2 Stroke, VESPA-S 2 Stroke /APRILIA 50 SR MOTARD 2 Stroke, MOJITO, SR H2O/GILERA 50 RUNNER, DNA, STALKER/ -58

1
P2R reference P2R reference 67214
Maker reference Maker reference 58136R

IGNITION "PIAGGIO GENUINE PART" 50 FLY 2 STROKE, LIBERTY 2 STROKE, NRG, TYPHOON, ZIP 2 STROKE, VESPA LX 2 STROKE, PRIMAVERA 2 STROKE, SPRINT 2 STROKE, VESPA-S 2 STROKE /APRILIA 50 SR MOTARD 2 STROKE, MOJITO, SR H2O/GILERA 50 RUNNER, DNA, STALKER/ -58

More information

Quantity required : 1
IGNITION STATOR "PIAGGIO GENUINE PART" 50 FLY 2005>, ZIP 2000>, TYPHOON 2005>, NRG 2005> / GILERA 50 RUNNER 2005>, STALKER 2005> / APRILIA SR 2003> -639865-

2
P2R reference P2R reference 67861
Maker reference Maker reference 639865

IGNITION STATOR "PIAGGIO GENUINE PART" 50 FLY 2005>, ZIP 2000>, TYPHOON 2005>, NRG 2005> / GILERA 50 RUNNER 2005>, STALKER 2005> / APRILIA SR 2003> -639865-

More information

Quantity required : 1
IGNITION ROTOR (KOKUSAN) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 stroke -584526-

3
P2R reference P2R reference 67303
Maker reference Maker reference 584526

IGNITION ROTOR (KOKUSAN) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -584526-

More information

Quantity required : 1
257134 - COLLIER

4
P2R reference P2R reference 66017
Maker reference Maker reference 257134

257134 - COLLIER

More information

Quantity required : 1
SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856-

5
P2R reference P2R reference 65399
Maker reference Maker reference 0158565

SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856-

More information

Quantity required : 3
873979 - VIS

6
P2R reference P2R reference 70514
Maker reference Maker reference 873979

873979 - VIS

More information

Quantity required : 2
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267-

7
P2R reference P2R reference 63721
Maker reference Maker reference 000267

WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267-

More information

Quantity required : 1
NUT - FOR IGNITION FLYWHEEL "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 4 stroke -289005-

8
P2R reference P2R reference 66210
Maker reference Maker reference 289005

NUT - FOR IGNITION FLYWHEEL "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 4 STROKE -289005-

More information

Quantity required : 1
