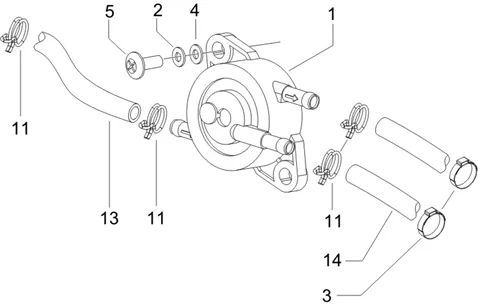

Vehicle Exploded View - GILERA RUNNER 50 SP 2010-2012 GILERA

Châssis - parties plastiques - carrosseries : 02.53 INSTALATION DE L'ALIMENTATION
Instalation de l'alimentation
Search
FUEL PUMP "PIAGGIO GENUINE PART" 50 FLY 4 stroke 2012>, NRG 2005>, 125 MP3 2007>, X8 2004>, X-EVO 2007>/ 50-125 GILERA RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM120903-

1
P2R reference P2R reference 73126
Maker reference Maker reference CM120903

FUEL PUMP "PIAGGIO GENUINE PART" 50 FLY 4 STROKE 2012>, NRG 2005>, 125 MP3 2007>, X8 2004>, X-EVO 2007>/ 50-125 GILERA RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM120903-

More information

Quantity required : 1
016405 - RONDELLE S01640500

2
P2R reference P2R reference 65415
Maker reference Maker reference 0164055

016405 - RONDELLE S01640500

More information

Quantity required : 2
CM001901 - COLLIER

3
P2R reference P2R reference 72863
Maker reference Maker reference CM001901

CM001901 - COLLIER

More information

Quantity required : 2
097733 - RONDELLE

4
P2R reference P2R reference 65682
Maker reference Maker reference 0977335

097733 - RONDELLE

More information

Quantity required : 2
SCREW - (M5X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER +SCOOTER -259151-

5
P2R reference P2R reference 66032
Maker reference Maker reference 259151

SCREW - (M5X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER +SCOOTER -259151-

More information

Quantity required : 2
CM002905 - COLLIER EX 194011

11
P2R reference P2R reference 72892
Maker reference Maker reference CM002905

CM002905 - COLLIER EX 194011

More information

Quantity required : 4
FUEL HOSE (5X10) L1060 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM001432-

14
P2R reference P2R reference 72862
Maker reference Maker reference CM001432

FUEL HOSE (5X10) L1060 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM001432-

More information

Quantity required : 1
