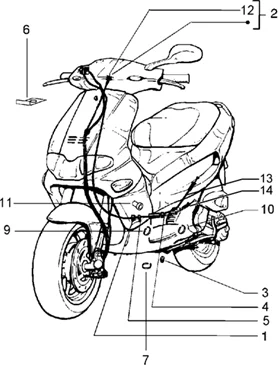

Vehicle Exploded View - GILERA RUNNER 50 Purejet 1998-2005 GILERA

Transmisisons : T44 TRANSMISSIONS
Transmissions
Search
SPLITTER UPPER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 stroke -271977-

1
P2R reference P2R reference 66109
Maker reference Maker reference 271977

SPLITTER UPPER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271977-

More information

Quantity required : 1
581848 - TRANSMISSION COMPTEUR KM.

2
P2R reference P2R reference 81654
Maker reference Maker reference 581848

581848 - TRANSMISSION COMPTEUR KM.

More information

Quantity required : 1
562603 - SUPPORT

3
P2R reference P2R reference 79862
Maker reference Maker reference 562603

562603 - SUPPORT

More information

Quantity required : 1
SPLITTER LOWER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 stroke -271976-

4
P2R reference P2R reference 66108
Maker reference Maker reference 271976

SPLITTER LOWER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271976-

More information

Quantity required : 1
THROTTLE CONTROL SPLITTER "PIAGGIO GENUINE PART" 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (3 PARTS KIT WITHOUT PROTECTIONS) -269571-

5
P2R reference P2R reference 66083
Maker reference Maker reference 269571

THROTTLE CONTROL SPLITTER "PIAGGIO GENUINE PART" 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (3 PARTS KIT WITHOUT PROTECTIONS) -269571-

More information

Quantity required : 1
583282 - JOINT PROTECT ARR FX

6
P2R reference P2R reference 67280
Maker reference Maker reference 583282

583282 - JOINT PROTECT ARR FX

More information

Quantity required : 1
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298-

7
P2R reference P2R reference 65742
Maker reference Maker reference 145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298-

More information

Quantity required : 2
564014 - COLLIER

9
P2R reference P2R reference 67045
Maker reference Maker reference 564014

564014 - COLLIER

More information

Quantity required : 1
271477 - COLLIER

10
P2R reference P2R reference 66101
Maker reference Maker reference 271477

271477 - COLLIER

More information

Quantity required : 1
CASIND END FOR DISPATCHER "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTERS 50cc 2 stroke -269572-

11
P2R reference P2R reference 66084
Maker reference Maker reference 269572

CASIND END FOR DISPATCHER "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTERS 50CC 2 STROKE -269572-

More information

Quantity required : 1
581849 - CABLE

12
P2R reference P2R reference 81655
Maker reference Maker reference 581849

581849 - CABLE

More information

Quantity required : 1
TRANSMISSION CABLE KIT- THROTTLE (FROM DISPATCHER TO OIL PUMP) "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, TYPHOON 2012>/GILERA 50 STALKER -268403-

13
P2R reference P2R reference 66071
Maker reference Maker reference 268403

TRANSMISSION CABLE KIT- THROTTLE (FROM DISPATCHER TO OIL PUMP) "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, TYPHOON 2012>/GILERA 50 STALKER -268403-

More information

Quantity required : 1
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

14
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 1
56092R - TRANSMISSION GAZ. DESD.

14
P2R reference P2R reference 79743
Maker reference Maker reference 56092R

56092R - TRANSMISSION GAZ. DESD.

More information

Quantity required : 1
